ACCELERATE DEVELOPMENT TIMES, INCREASE RELIABILITY WITH LOW-PROFILE MINI-ITX SYSTEMS

Summary

AAEON introduces the ACS-1U01 Series, compact industrial systems enclosed in a durable 1U chassis. The series includes three models—ACS-1U01-BT4, ACS-1U01-H110B, and ACS-1U01-H81B—targeting applications like automation, POS, medical, signage, and transportation. These systems offer robust connectivity, support Windows and Linux, and feature low power consumption. The ACS-1U01-BT4 uses an Intel Atom-based motherboard, while the ACS-1U01-H110B supports up to 65W 6th/7th Gen Intel Core processors. All models provide flexible expansion, multiple display outputs, and operate within a 0°C to 50°C range.

Parts used in the ACS-1U01 Series:

  • ACS-1U01-BT4 Model with EMB-BT4 motherboard
  • Intel® Atom™ J1900 or N2807 processor (for EMB-BT4)
  • DDR3L SODIMM sockets (up to 8GB dual-channel or single channel)
  • Gigabit Ethernet LAN port
  • Dual HDMI and VGA display outputs
  • USB 3.0 and USB 2.0 ports
  • COM ports (up to six)
  • ACS-1U01-H110B Model with EMB-H110B motherboard
  • Socket-type Intel Core™ i Series 6th/7th Gen processors (up to 65W)
  • DDR4 SODIMM sockets (up to 32GB dual-channel memory)
  • Dual HDMI ports or DisplayPort option
  • Four USB 3.0 and four USB 2.0 ports
  • COM port
  • 1U low-profile chassis with wallmount kit
  • 2.5” HDD tray
  • Heatsinks for operating temperature range 0°C to 50°C

AAEON, a major developer of innovative industrial systems, releases the ACS-1U01 Series, a range of turnkey solutions that capitalize on the strength of three of its bestselling SBCs. By enclosing the boards inside a tough 1U chassis, AAEON is giving customers a ready-to-go system for use in a variety of applications including industrial automation, POS, medical equipment, digital signage, and transportation.

ACCELERATE DEVELOPMENT TIMES, INCREASE RELIABILITY WITH LOW-PROFILE MINI-ITX SYSTEMS

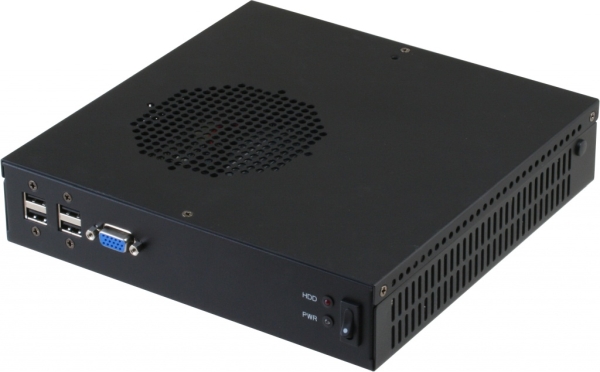

The three models – the ACS-1U01-BT4, ACS-1U01-H110B, and ACS-1U01-H81B – feature a tough, 44.45mm-high chassis with a wallmount kit and 2.5” HDD tray. The low-profile, low-power-consumption systems have full Windows and Linux support, they can be expanded via full- and half-size Mini-Card slots, and heatsinks give them operating temperature ranges of 0oC~50oC.

The ACS-1U01-BT4 houses AAEON’s EMB-BT4 motherboard, which can be fitted with either an Intel® Atom™ J1900 or N2807 processor. The J1900 can be used with a pair of DDR3L SODIMM sockets for up to 8GB dual-channel memory, while the N2807 can be used with a single DDR3L SODIMM socket. The board’s extensive I/O interface provides the system with a GbE LAN port, dual independent HDMI and VGA displays, a USB3.0 port, up to seven USB2.0, and up to six COM ports.

The ACS-1U01-H110B contains AAEON’s EMB-H110B, which is built to accommodate up to 65W 6th/7th Generation Intel Core™ i Series socket-type processors and supports up to 32GB dual-channel memory via a pair of DDR4 SODIMM sockets. Dual independent display is possible through two HDMI ports, or the option of DP connections. The system also features a GbE LAN port, four USB3.0 ports, four USB2.0 ports, and a COM port.

Read more: ACCELERATE DEVELOPMENT TIMES, INCREASE RELIABILITY WITH LOW-PROFILE MINI-ITX SYSTEMS
