Summary of AT89C52 APPLICATIONS EXAMPLES PROTEUS ISIS CIRCUITS (10 PROJECTS)
This article presents ten beginner-friendly AT89C52 microcontroller projects using Proteus ISIS simulation. Each example features simple code (3-5 lines) and includes downloadable source files like Hex, Bin, and Bass formats. The collection covers various counting applications, display multiplexing, and sensor integration to help learners understand basic embedded systems logic.
Parts used in the AT89C52 Applications:
- AT89C52 Microcontroller
- LEDs
- 7-segment Display
- 7447 Decoder
- ADC0831 Analog-to-Digital Converter
- Digital Potentiometer
- LM35 Temperature Sensor
- LCD Display
- Multiplexed LED Display setup
AT89C52 examples of applications can be helpful for beginners of all samples prepared with simple 3 .5 source lines of code. Bass. Hex, bin, etc.. isis proteus have codes and simulation files. 0-255 binary…Electronics Projects, AT89C52 Applications Examples Proteus isis Circuits (10 projects) “avr project, microcontroller projects, “
AT89C52 examples of applications can be helpful for beginners of all samples prepared with simple 3 .5 source lines of code. Bass. Hex, bin, etc.. isis proteus have codes and simulation files.
0-255 binary counter (LEDs), 0-9 counter circuits (display), 00-99 advanced counter circuits (display, 7447), 00-99 down counter circuit (display, 7447), 0-9 Multiplexed LED Display counter (one on each display again)

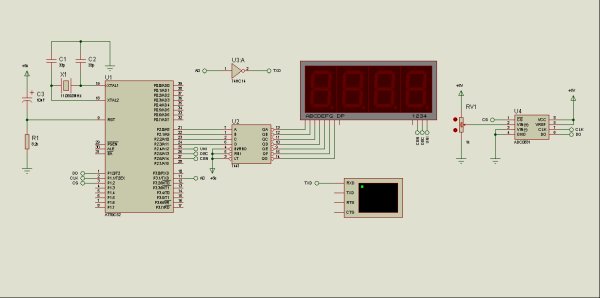

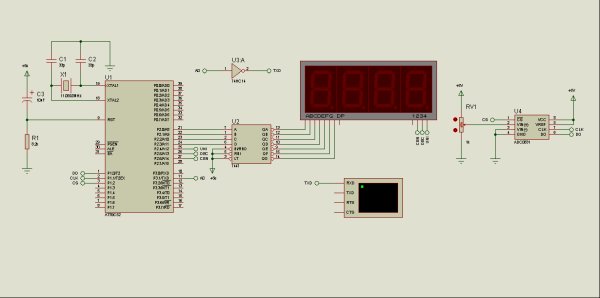

0-9 counter Multiplexed LED Display (display on the increase), 00-99 forward counter Multiplexed LED Display, 00-99 down counter Multiplexed LED Display, ADC0831 digital potentiometer 0-255, ADC0831 LM35 temperature sensor use LCD display
AT89C52 APPLICATIONS EXAMPLE SCHEMATIC
source: https://320volt.com/en/at89c52-uygulamalari-proteus-isis-10-proje/ Isis circuit source simulation files the Atmel AT89C52: at89c52-applications-proteus-isis-circuits-10-projects.rar
- Are these projects suitable for beginners?
Yes, the examples are prepared specifically to be helpful for beginners of all levels. - How complex is the source code provided?
The samples are prepared with simple 3 to 5 source lines of code. - What file formats are available for download?
The project includes Bass, Hex, and bin file formats along with simulation files. - Does the article include circuit simulations?
Yes, Isis Proteus has codes and simulation files included for the circuits. - Can I find a binary counter project in this list?

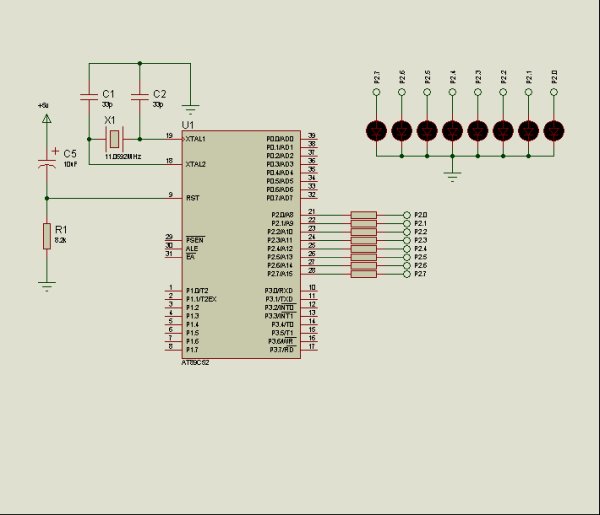

Yes, there is a 0-255 binary counter project using LEDs. - What components are used for the 00-99 advanced counter?

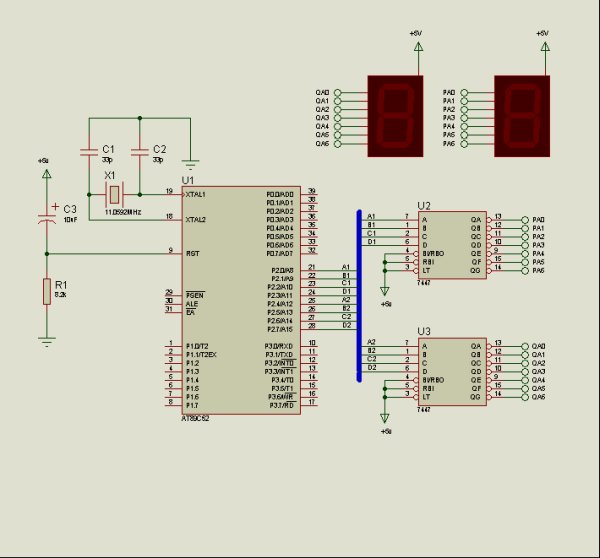

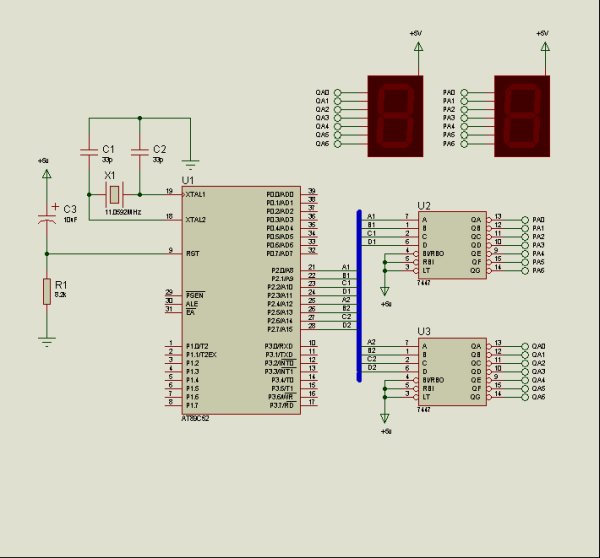

This circuit uses a display and a 7447 decoder. - How does the temperature sensing project work?

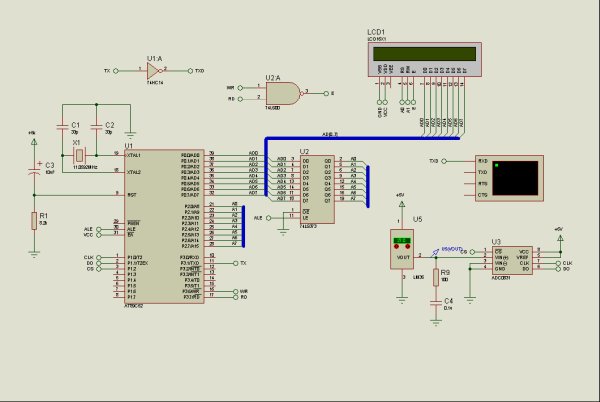

It uses an ADC0831 connected to an LM35 temperature sensor with an LCD display. - Is there a down counter project included?
Yes, the list includes both a 00-99 down counter circuit and a multiplexed version. - Where can I find the schematic gallery images?
The schematics are displayed in a gallery with columns set to four. - What is the name of the compressed file containing the sources?
The source simulation files are contained in at89c52-applications-proteus-isis-circuits-10-projects.rar.
