Summary of LIGHT FOLLOWING ROBOT WITH ATMEL ATTINY25
This article describes a simple light-following robot project built around the Atmel ATtiny25V microcontroller. The robot uses two LDRs to detect light sources and controls motors via an H-bridge circuit powered by a 3.7V Lithium-polymer battery. The design emphasizes simplicity, utilizing basic components like resistors, capacitors, and transistors to create a stable, functional device suitable for electronics hobbyists.
Parts used in the Light Following Robot:
- Attiny25v (microcontroller)
- MPC1700 (3.3v regulator)
- 2X LDR
- 2X 10 kOhm resistor
- 2X 470 ohm resistor
- 2X 2N3904 transistor
- 2X 1N4148 diode
- 100nF capacitor
- 100uF capacitor
- Lithium-polymer battery 3.7 V 100 mA
- 2X Fuse holder
- Pager motor 2X
- Heat-shrinkable sleeving
- rubber tubing
- 6-pin ISP connector
Light following robot circuit board on attiny25v not very complicated circuit Lithium-polymer battery provided with the circuit feeding the tiny H-bridge output (2N3904) drive motors are controlled with two LDR light is perceived. As… Electronics Projects, Light Following Robot with Atmel ATtiny25 “avr project, microcontroller projects, “

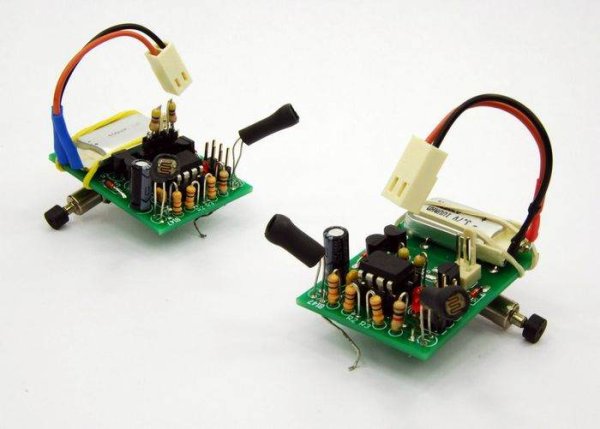

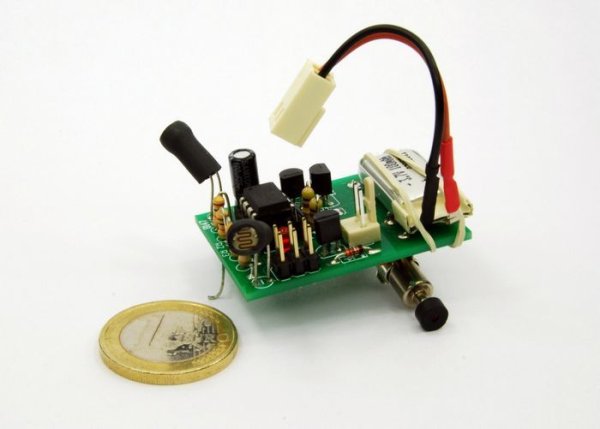

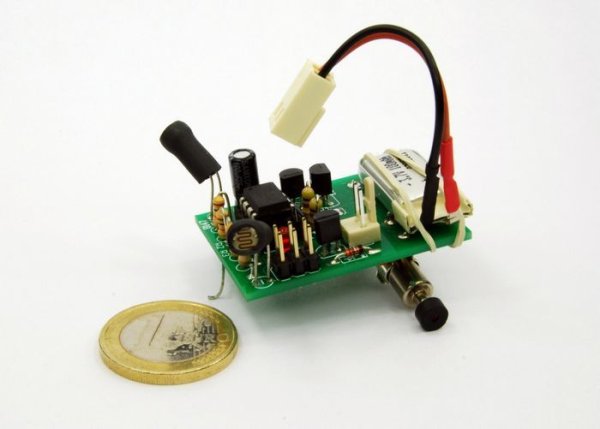

Light following robot circuit board on attiny25v not very complicated circuit Lithium-polymer battery provided with the circuit feeding the tiny H-bridge output (2N3904) drive motors are controlled with two LDR light is perceived. As you can see in the pictures material placement and cute 🙂 quite well also in the video seemed to be running very stable robot.
LIGHT FOLLOWING ROBOT PROJECT
The materials used in the robot at half;
Attiny25v (microcontroller)
MPC1700 (3.3v regulator)
2X LDR
2X 10 kOhm resistor
2X 470 ohm resistor
2X 2N3904 transistor
2X 1N4148 diode
100nF capacitor
100uF capacitor
Lithium-polymer battery 3.7 V 100 mA
2X Fuse holder
Pager motor 2X
Heat-shrinkable sleeving
rubber tubing
6-pin ISP connector
Atmel attiny25v following robot project with the source of light c eagle pcb software and shared schema files Source: http://tinkerlog.com/2009/07/24/tiny-braitenberg-vehicle/ alternative link: light-following-robot-with-atmel-attiny25.rar alternative link 2: Light Following Robot.rar
-
What is the main function of the LDRs in this robot?
The two LDRs perceive light to control how the motors are driven. -
How does the robot drive its motors?
Motors are driven by an H-bridge output using 2N3904 transistors. -
What type of power source powers the circuit?
A 3.7 V 100 mA Lithium-polymer battery provides power to the circuit. -
Which microcontroller is used for this project?
The Atmel ATtiny25V microcontroller is used to control the system. -
Can I use Eagle PCB software for this project?
Yes, the project shares schema files created with Eagle PCB software. -
How many pager motors are required for the build?
The project requires two pager motors. -
What voltage regulator is included in the parts list?
An MPC1700 3.3v regulator is used in the circuit.
