Summary of 1MM HEIGHT SMD LED CAN BE PLACED UPSIDE DOWN.
### Summary The Kingbright KPTR series enables reverse mounting, allowing LEDs to be hidden within the PCB for ultra-thin designs. By placing components on the rear side through a milled hole, this method saves critical top-side space, facilitates backlighting non-designed components like switches, and prevents light leakage in densely packed arrays. This approach is ideal for creating high-quality, thin indication panels where even minimal height matters.
Parts used in the Kingbright KPTR Series Project:
- Kingbright KPTR series LED
- PCB (Printed Circuit Board)
- Milled hole for LED body
- Semi-transparent panel

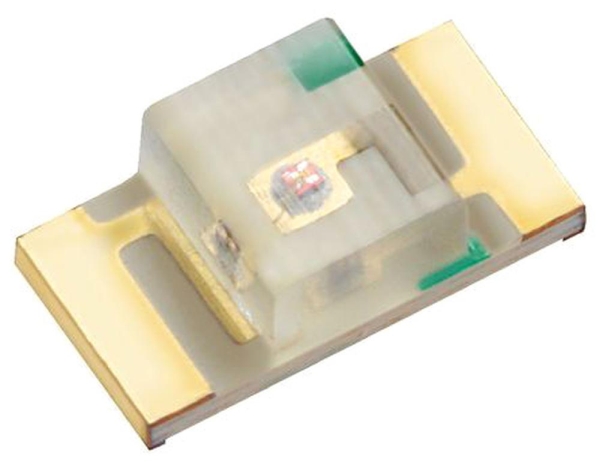

Kingbright KPTR series, suitable for reverse mounting, makes it possible to achieve that the LED is hidden in the PCB.
Naturally, manufacturing LED with a zero height is most likely unreal at the current physics status and 3D experience of the world. Nevertheless, it´s still possible to reach the goal that the LED wouldn’t stick out of the PCB – by the above mentioned “reverse” mounting, alias by mounting from a rear side of a PCB. In this case, naturally, there´s a suitable size opening in the rear side of a PCB.
What Is It Good For?
Simply said, PCB tracks to a LED and the package itself is from the rear PCB side. On the top side, on the side on which the LED lights up, you then have a free hand in the placement of other components. In the situation when there are only 0,2mm high LEDs on the market it may seem useless but sometimes even those 0,2mm matter. It can be said that such an assembly practically does not affect the top of the PCB, except the need to have a milled hole for the LED body in the PCB.
By this way, it´s possible to make extra thin backlight panels and mainly also to use LEDs even to backlight components, which weren´t designed/ accommodated for backlight (switches, …). Another advantage of such mounting is that even relatively densely placed LEDs don´t interfere among each other. In result, for example by gluing such PCB to a semi-transparent panel, it´s possible to gain a cheap and high-quality indication panel without undesired light leakage to nearest segments.
Read more: 1MM HEIGHT SMD LED CAN BE PLACED UPSIDE DOWN.
- How does reverse mounting benefit PCB design?
It allows the LED package and tracks to sit on the rear side, leaving the top side free for other components. - What is the primary purpose of using this mounting technique?
To achieve ultra-thin backlight panels and backlight components not originally designed for it. - Does this method affect the top surface of the PCB?
No, it practically does not affect the top except for requiring a milled hole for the LED body. - Can this solution prevent light leakage between segments?
Yes, when glued to a semi-transparent panel, it gains a high-quality indication panel without undesired light leakage. - Why is zero-height manufacturing considered unrealistic?
It is likely unreal due to current physics status and 3D experience of the world. - What advantage does this offer for densely placed LEDs?
Relatively densely placed LEDs do not interfere with each other during assembly.
