ANALOG DEVICES LAUNCHED TWO ETHERNET CHIPS FOR UP TO 1.7KM DISTANCE COMMUNICATION

Ethernet cables are commonly applicable in local area networks (LANs) and wide-area networks (WANs). The ethernet cables support higher bit-rates and longer link distance than other wired LAN technologies such as ARCNET and Token Ring. Ethernet cables are practical when wiring your house. But if you want to connect corporate campuses with them, fiber optics are a better choice to get around the limits of Ethernet cable. There are a few different versions of ethernet cable, but they all have a maximum distance of 90-100 meters. This limit is because the faster we push data, the more sensitive the data becomes to degradation. With lower bit rates up to 100 Mbps or 10 Mbps, we can get a much longer cable. Ethernet cables with a bandwidth of 100 Mbps are tested to go further at 400+ feet with no errors.

A new ethernet physical layer standard (IEEE 802.3cg-2019) was approved by the IEEE on November 7, 2019, to allow for cables over one kilometer using a single twisted-pair cable. These new variants of ethernet cables support ten megabits per second Ethernet over a single twisted pair. The 10BASE-T1L ethernet standard is preferred for long-range industrial IoT applications as well as short-distance applications where substantial electrical noise is present.

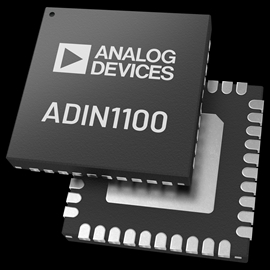

Analog Devices has launched two 10BASE-T1L Ethernet chips with ADIN1100 Ethernet PHY and ADIN1110 Ethernet MAC-PHY. The chips are compliant with the IEEE 802.3cg Ethernet standard. The ADIN1100 is a robust low-power single port 10BASE-T1L transceiver designed for long-range industrial applications.

It integrates an Ethernet PHY core with all the associated analog circuitry, input and output clock buffering, the management interfaces control register and subsystem registers, and the MAC interface and control logic to manage the reset and clock control and pin configuration. The chip has 1V peak to peak operation mode, independent Rx/Tx pins, external termination resistors for intrinsic safety applications.
