ASRock Industrial has announced four new products based on Intel’s 8th Gen Whiskey Lake-U: a thin Mini-ITX “IMB-1216” board, a 3.5-inch “SBC-350,” a NUC 4×4 form-factor “iBox-8365U” mini-PC and NUC-8365U mainboard. The IMB-1216 thin Mini-ITX board and the 3.5-inch SBC-350 boards run the quad-core, dual-threaded Core i5-8365U, clocking at 1.6GHz (4.1GHz Turbo). The iBox-8365U mini-PC and the NUC-8365U board that enables it, features the i5-8365U in a BGA 1528 package and also supports the 1.8GHz (4.6GHz Turbo), quad-core Core i7-8565U and the dual-core, 1.8GHz (3.9GHz Turbo) Core i3-8145U. Similar to the i5 model, these are both dual-threaded and enables Intel Gen9 UHD Graphics 620 with 24 EUs and a 15-25W TDP.

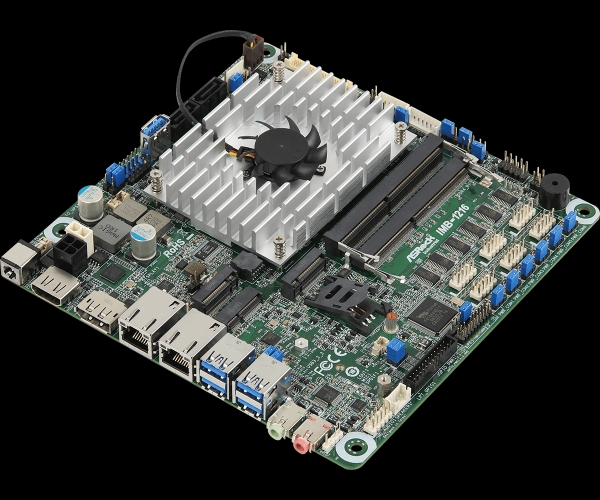

ASRock’s announcement mentions only Windows 10 support, but other sites list Linux support. The iBox-8365U runs Linux 2.6. The four products offer up to up to 32GB of dual-channel, 2400MHz DDR4, including ECC RAM. The IMB-1216 offers a 170 x 170mm Mini-ITX design with a low profile, with support for industrial applications with a semi-extended 0 to 60°C range and offers a choice of 12V or 19-28V DC inputs with an AT/ATX switch. The IMB-1216 is fitted with 2x Gigabit Ethernet ports (Intel and Realtek) and 2x SATA III ports, and also a SATA power output. It utilizes the Whiskey Lake support for USB 3.1, and offers 4x USB 3.1 host ports and a fifth internal 3.1 interface. Available also, are three USB 2.0 headers, with 2x RS232/422/485, 3x RS-232, and 8x GPIO interfaces. Its triple display feature is supported via 4K-ready HDMI and DP++ 1.2 ports and internal VGA and LVDS (or eDP) headers.
