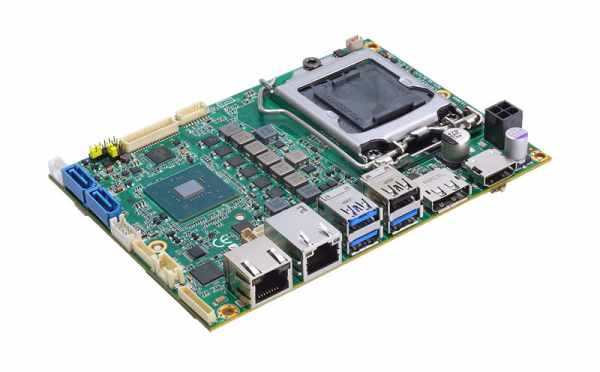

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the CAPA520, its new 3.5” embedded board featuring the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors (code name: Coffee Lake) with the Intel® H310 chipset (Q370 optional). The industrial-grade CAPA520 with a size of 146 mm x 104 mm features triple-display capability through HDMI, LVDS and DisplayPort interfaces, enabling multi-display applications in a limited space. This powerful embedded SBC is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.
With rich I/O connectivity and great expansions, the highly integrated CAPA520 was designed to shorten the time to market and reduce development costs. It delivers powerful 3D and 4K graphics through the integrated Intel® UHD Graphics 630. Moreover, it can operate in a wide temperature range from -20°C to 60°C,
said Leo Chen, a product manager of the Product Planning Division at Axiomtek.
To ensure reliable and stable operation, this 3.5-inch embedded SBC supports the Intel® AMT 12 for easy remote management and monitoring and has hardware monitoring function to monitor CPU/system temperature, voltage and fan speed.
The CAPA520 supports one 260-pin DDR4-2666 SO-DIMM for up to 16GB of system memory. To meet customer varied needs, the Intel® Core-based embedded board is equipped with one PCI Express Mini Card slot with mSATA support and an exclusive Axiomtek ZIO connector with USB, PCIe, LPC and SMBus expansion buses. It has one RS-232/422/485 port, three Gigabit Ethernet ports with Intel® i211AT and intel® i219LM controllers, three USB 3.0 ports, three USB 2.0 ports, one HDMI port, one LVDS port, one DisplayPort port, HD audio and 8-channel DIO port. The outstanding CAPA520 has a +12V DC power supply input with AT auto power on. It supports Windows® 10 and Linux.
