Summary of HIGHLY INTEGRATED GATEWAY MODULE SPEEDS LORA DEPLOYMENTS
Murata announced the LBAA0ZZ1 LoRa Pico Gateway, an ultra-compact 14-pin metal-shielded module supporting eight channels for EU and US ISM bands. Measuring 55.0×21.0x3.4mm, it features a Semtech SX1308 concentrator, two SX1257 transceivers, an STM32F401 microcontroller, and a Skyworks RF front-end. Designed for low-cost long-range IoT applications like smart agriculture and utility metering, the module handles packet forwarding via USB CDC or UART while managing power consumption efficiently.
Parts used in the LBAA0ZZ1 LoRa Pico Gateway:
- Semtech SX1308 transceiver concentrator
- Two Semtech SX1257 RF front end I/Q transceivers
- STMicroElectronics STM32F401 Arm Cortex M4 microcontroller
- Skyworks RF front-end multi-chip module
- USB CDC virtual port
- UART port

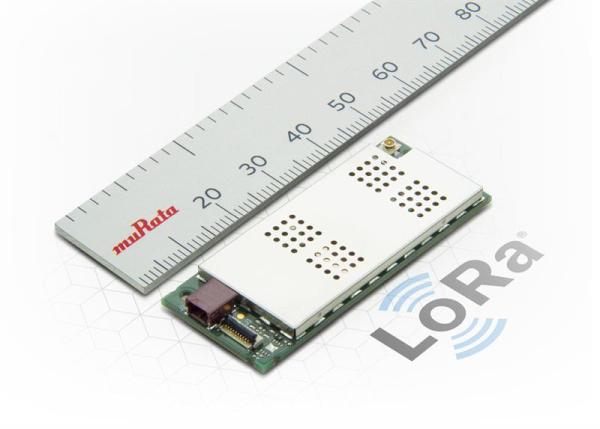

The release of the LBAA0ZZ1QM (US) & LBAA0ZZ1TY (EU) LoRa Pico Gateway 14-pin metal-shielded module has been announced by Murata. Supporting eight channels and available in two variants for use in either EU or US ISM bands, this ultra compact module measures just 55.0×21.0×3.4mm.
Designed as a single substrate low cost module that can enable the fast provision of low data rate LoRa radio links, the module comprises a Semtech SX1308 transceiver concentrator capable of managing packets from many remotely dispersed end-points, two Semtech SX1257 highly integrated RF front end I/Q transceivers and an STMicroElectronics STM32F401 Arm Cortex M4 microcontroller. A Skyworks RF front-end multi-chip module provides antenna matching, receiver pre-amplifier and transmitter final stage function.
The microcontroller hosts packet forwarding, communication with the application host controller and the module’s power management functions. The packet forwarder handles the two-way communication of packets between an end-point and the network server while the host driver provisions a USB CDC virtual port to communication with the host gateway application processor.
Alternatively, if desired, the module’s UART port can be used for communication with the gateway’s host. The microcontroller firmware also takes care of the power management, in particular when using a USB port, by limiting downlink power consumption to within the 500mA maximum power budget.
The LoRa network provides a low cost long-range communication infrastructure to communication with thousands of end-points. Example deployments include utility meter reading, smart agriculture and industrial IoT applications. Ensuring reliable communication across metropolitan or rural areas is essential and gateways such as the Murata LBAA0ZZ1 play a part in maintaining network links.
Read more: HIGHLY INTEGRATED GATEWAY MODULE SPEEDS LORA DEPLOYMENTS
- What are the dimensions of the LBAA0ZZ1 module?
The module measures just 55.0 by 21.0 by 3.4 millimeters. - How many channels does the LBAA0ZZ1 support?
The module supports eight channels. - Can this module be used in both EU and US bands?
Yes, there are variants available for use in either EU or US ISM bands. - Which microcontroller is hosted inside the module?
The module hosts an STMicroElectronics STM32F401 Arm Cortex M4 microcontroller. - Does the module support communication via USB?
Yes, the host driver provisions a USB CDC virtual port to communicate with the host gateway application processor. - Is UART communication supported as an alternative?
Yes, the module's UART port can be used for communication with the gateway's host. - What is the maximum power budget when using the USB port?
The firmware limits downlink power consumption to within the 500mA maximum power budget. - What functions does the Skyworks RF front-end provide?
It provides antenna matching, receiver pre-amplifier, and transmitter final stage functions.
