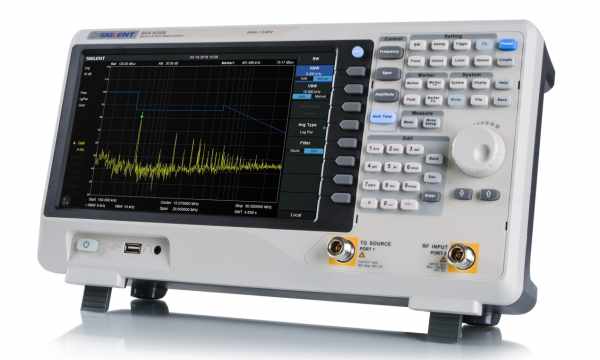

Siglent SVA1015X 9 kHz – 1.5 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 1.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
The Siglent SVA1015X Spectrum / Vector Network Analyzer – a powerful tool for measuring the performance of RF circuits and networks such as amplifiers, filters, attenuators, cables, and antennas. With a wide frequency range from 9kHz to 1.5GHz, the SVA1015X analyzer delivers reliable automatic measurements with its built-in tracking generator and multiple modes of operation. With the optional VNA package, this swept super-heterodyne spectrum analyzer can operate as a vector network analyzer, a frequency domain reflectometer for distance-to-fault location, and a modulation analyzer. User-friendly operation is enhanced by the choice of its 10.1” (1024×600) multi-touch screen, mouse, or keyboard input. Remote control is also possible via a web browser or a local PC (SCPI / Labview / IVI , based on USB-TMC / VXI-11 / Socket / Telnet).
Key Features:
- Tracking Generator Standard
- Distance To Fault (Opt.)
- Vector Network Analyzer function (included after 9/23/2019)
- EMI Filter and Quasi-Peak Detector Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
Specifications
- Spectrum Analysis 9 kHz – 1.5 GHz (Tracking generator covers 5 MHz to 1.5 GHz in the S.A. mode)
- Vector Network Analysis 10 MHz – 1.5 GHz
- Distance-to-fault (Optional)
- Digital Modulation Analysis (Optional)
- Touch-screen display
- -156 dBc/Hz Displayed Average Noise Level (Typ.)
- -99 dBc/Hz Phase Noise @ 10 kHz offset (1 GHz, Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Supports mouse, keyboard, and web browser-based remote control
