Lichee Dan combines two beautiful worlds together: Open source and Artificial Intelligence into one single platform. Lichee Dan which is also officially named the Sipeed M1 series is an excellent open source AI development kit made by the team behind the LicheePi boards. They aim to promote AI-related development and education.
Unlike the conventional C or C++ seen in most hardware boards, the Sipeed M1 integrates Micropython to make development pretty smooth and straightforward. At the heart of the Sipeed M1 platform is the AI chip K210by Kendryte, a dual-core RISC-V with an FPU. It serves as the core unit and dual-core processing with independent FPU, 64-bit CPU and 8M in-built SRAM. With a 400Mhz adjustable nominal frequency it supports multiplication, division and square root operation.
Below are the Sipeed M1 module specs:
- SoC – Kendryte K210 dual core 64-bit RISC-V processor @ 400 MHz with KPU CNN hardware accelerator, APU audio hardware accelerator, 6 MB general purpose SRAM, 2MB AI SRAM memory, and AXI ROM to load user program from SPI flash
- Package – 72-pin (25.4 x 25.4mm)
The Lichee Dan/ Sipeed M1 has the following features:
- Neural Network Processor (KPU)
- Audio processor (APU)
- Fast Fourier Transform Accelerator (FFT Accelerator)
- Advanced Encryption Accelerator (AES Accelerator)
- Secure Hash Algorithm Accelerator (SHA256 Accelerator)

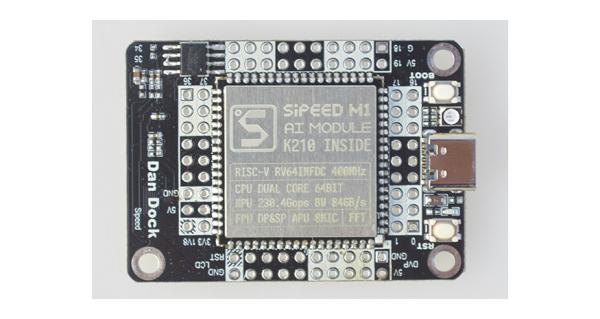

The 72pin board might be pretty difficult to use on its own, but thanks to the Sipeed MAIX development board called the Dan Dock, you can have access to all the functionality and some extras as well. In the AI processing, AI Chip (K210) can perform operations such as convolution, batch normalization, activation, and pooling. At the same time, the pre-processing of voice direction scanning and voice data output can also be performed. It offers [email protected], 400MHz, and when you overclock to 800MHz, it offers 0.5TOPS. This means you can do object recognition with a rate of [email protected] resolution.
