3D Printed Ethernet Telescope: Explore the Universe Digitally!

Contents hide

1 Summary of 3D Printed Ethernet Telescope

1.1 Parts used in the WIZKon Telescope:

2 Step 1: Prepare Material

3 Step 2: Assembly_3D Printing

4 Step 3: Assembly_Serial Camera Wiring

5 Quick Solutions to Questions related to WIZKon Telescope:

Summary of 3D Printed Ethernet Telescope

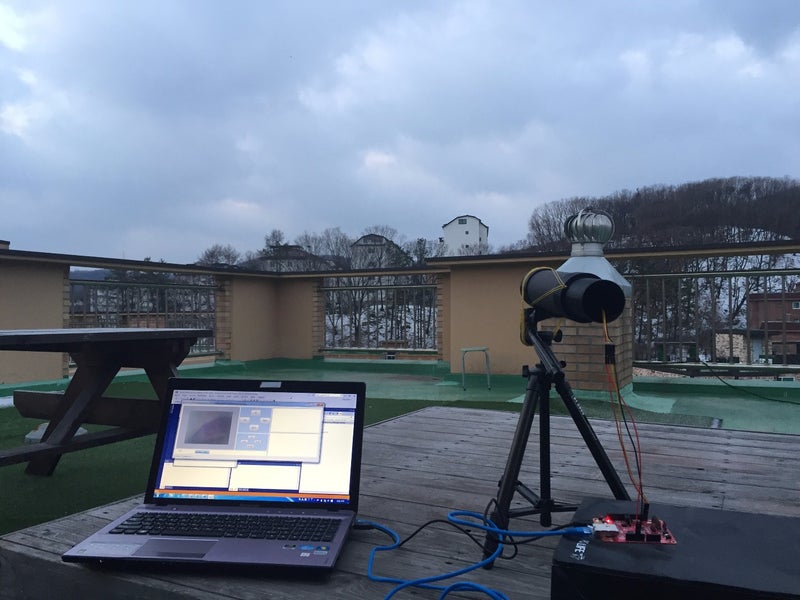

WIZKon Telescope is a custom Ethernet-enabled telescope project inspired by PiKon, featuring 3D-printed components and serial camera integration.

Parts used in the WIZKon Telescope:

3D CAD file
WIZwiki-W7500 or WIZwiki-W7500ECO (mbed)
LJ-DSC02 Serial Camera
SSG-B51 Lens
Rubber band
2mm x 10 screw bolt
Wire
Black thick paper
Plastic support
Pin header socket

I’ve seen PiKon. it’s great. i want make it. not original but add function!!

so I made Ethernet Telescope. it’s Project name is WIZKon Telescope !! : )

Step 1: Prepare Material

Need these…

3D cad file : i published below site -> Link
mbed : i use WIZwiki-W7500 or WIZwiki-W7500ECO -> Link
Serial Camera : i use LJ-DSC02, found this site -> Link
Lens : i use SSG-B51, found this site -> Link
etc : rubber band, 2mm x 10, 20 screw bolt, wire, black thick paper, plastic support, pin header socket

Step 2: Assembly_3D Printing

Although not shown in the picture, even the lens cover is also required.

Step 3: Assembly_Serial Camera Wiring

Step 4: Assembly_mounte the Camera in the Middle
