### Summary Gateworks has introduced a flexible Mini-PCIe to M.2 adapter designed to enable 5G cellular connectivity on single-board computers that utilize Mini-PCIe slots. This adapter converts the existing slot into an M.2 B-Key interface, accommodating modems up to 52mm in length. It supports USB 2.0 and 3.0 signaling, includes dual Nano SIM slots on the backside, and is compatible with various modem widths of 30mm or less.
Parts used in the 5G Cellular Modem Adapter:
- Mini-PCIe to M.2 adapter
- M.2 B-Key slot
- Dual Nano SIM slots
- USB 2.0 interface
- USB 3.0 interface
- PCIe signalling support (optional)
5G is the latest technology in the cellular communication space, offering faster speeds, lower latency, and enhanced capacity. 5G modems for embedded applications are largely being released in the M.2 form factor. Gateworks single board computers use Mini-PCIe slots for cellular and WiFi connectivity.

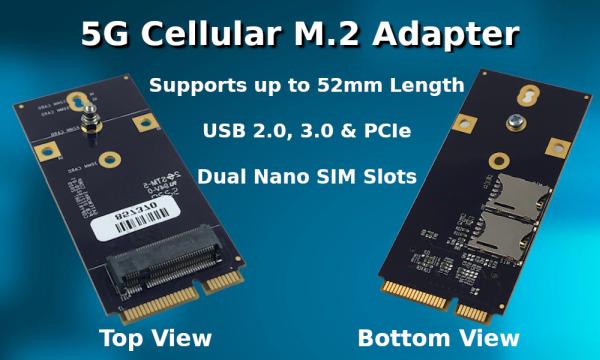

To accommodate these new 5G modems, Gateworks has released a flexible Mini-PCIe to M.2 adapter that supports modems up to 52mm in length. The M.2 slot is a B-Key slot that supports USB 2.0 & 3.0 depending on the model, with PCIe signalling optional. Dual Nano SIM slots are available on the backside of the card.
5G M.2 Cellular Modem Adapter Highlights:
- Converts Mini-PCIe slot to M.2 B-Key Slot
- Supports various size M.2 Cards30, 42, 50 & 52mm long 5G M.2 Modems (30mm wide & less)
- Offers Dual Nano SIM slots
- Supports both USB 2.0 and 3.0 (varies by model)
Read more: 5G CELLULAR MODEM M.2 ADAPTER FOR MINI-PCIE SLOTS ON SBCS
- What form factor are 5G modems for embedded applications largely released in?
They are largely being released in the M.2 form factor. - How does Gateworks accommodate new 5G modems on boards with Mini-PCIe slots?
By releasing a flexible Mini-PCIe to M.2 adapter. - What is the maximum length of 5G M.2 modems supported by this adapter?
The adapter supports modems up to 52mm in length. - Does the adapter support both USB 2.0 and USB 3.0?
Yes, it supports both USB 2.0 and 3.0 depending on the model. - Where are the SIM slots located on the adapter card?
Dual Nano SIM slots are available on the backside of the card. - What type of keying does the M.2 slot use?
The M.2 slot is a B-Key slot.
