Summary of 60GHZ RF ANTENNA MODULE USES OPTIMISED ANTENNA BEAMFORMING
Murata launched the LBKA0ZZ1NH-317, a high-gain millimeter-wave antenna module supporting IEEE 802.11ad at 60 GHz with speeds up to 4.62 Gbps. Designed for next-gen wireless networks, it utilizes proprietary LTCC circuit boards for optimized beamforming and low transmission loss. This module addresses bandwidth demands for 4K/VR content and reduces infrastructure costs by enabling multi-gigabit communication between base stations over hundreds of meters without extensive cabling.
Parts used in the LBKA0ZZ1NH-317 Module:
- Murata RF module
- Low temperature co-fired ceramics (LTCC) circuit board
- RFIC (Radio Frequency Integrated Circuit)
- Antenna package
- Millimeter-wave RF antenna

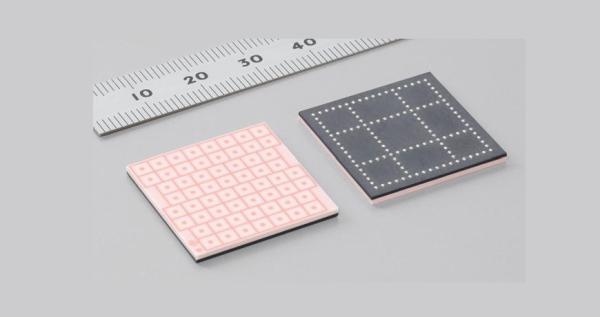

Murata has released a high gain antenna module that facilitates communication up to 4.62 Gbps. The new millimeter-wave RF antenna module will contribute to the creation of next generation wireless networks that utilise the 60 GHz frequency by supporting the IEEE802.11ad millimeter-wave wireless LAN standard.
The need is growing for faster internet communications in line with the increase in bandwidth required by internet contents such as ultra-high definition (HD, 4K) video, augmented reality (AR), and virtual reality (VR). In addition, constructing wired networks that cover wide areas requires enormous amounts of cables and labour, and the costs of constructing and maintaining this infrastructure are also considerable.
Dubbed LBKA0ZZ1NH-317, the new module is anticipated to be utilised in a wide range of applications such as for communication between mobile phone base stations including next-generation 5G wireless communication, for communication between Wi-Fi hotspots, and for use in wireless communication networks in smart cities.
Murata’s RF module realises optimised antenna beamforming using a proprietary low temperature co-fired ceramics (LTCC) circuit board capable of facilitating high-precision 60 GHz band communication. In addition to communication via a standalone module, by combining multiple modules it is possible to extend the communication range and link outdoor base stations several hundred meters apart for multi-gigabit communication. The LTCC circuit board’s high heat resistance and low moisture absorption ensure excellent operational reliability and enable use even in outdoor base station environments.
The highly efficient antenna module operation realises low transmission line loss between the IC and the antenna thanks to the low-loss material characteristics of the LTCC. The modularised RFIC and antenna package eliminates the need to design new millimeter-wave RF circuitry, which reduces the amount of labour required for developing new network equipment.
Read more: 60GHZ RF ANTENNA MODULE USES OPTIMISED ANTENNA BEAMFORMING
- What speed does the new Murata antenna module support?
The module facilitates communication up to 4.62 Gbps. - Does the module support the IEEE 802.11ad standard?
Yes, it supports the IEEE 802.11ad millimeter-wave wireless LAN standard. - Can multiple modules be combined to extend range?
Yes, combining multiple modules allows extending the communication range to link outdoor base stations several hundred meters apart. - Is the module suitable for outdoor environments?
Yes, the LTCC circuit board features high heat resistance and low moisture absorption for excellent operational reliability outdoors. - How does the module reduce development labor?
The modularized RFIC and antenna package eliminates the need to design new millimeter-wave RF circuitry. - What material is used for the circuit board?
The module uses a proprietary low temperature co-fired ceramics (LTCC) circuit board. - What applications are anticipated for this module?
It is anticipated for use in mobile phone base stations, Wi-Fi hotspots, and smart city wireless networks. - Does the module offer low transmission line loss?
Yes, the low-loss material characteristics of the LTCC realize low transmission line loss between the IC and the antenna.
