Summary of DEVEBOX’S STM32H7XX-M DEVELOPMENT BOARDS FEATURES STMICROELECTRONICS’ STM32H7 MCUS

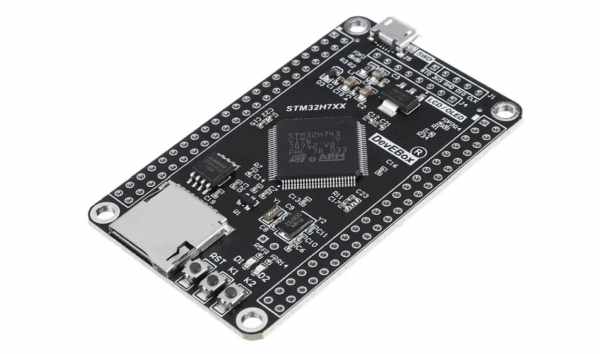

The STM32H7XX-M development boards by MCUdev DevEBox utilize STMicroelectronics' STM32H7 series MCUs for factory automation and security applications. Available in single-core (STM32H743VIT6) and value-line (STM32H750VBT6) variants, these compact boards feature extensive connectivity options including Ethernet, HDMI-CEC, camera interfaces, and multiple communication protocols like SPI, I2C, and USB. They support OLED/TFT displays and offer a wide operating temperature range suitable for industrial environments.
Parts used in the STM32H7XX-M Development Boards:
- STM32H743VIT6 Single-Core Module
- STM32H750VBT6 Value Line Module
- OLED Interface (0.96″ / 1.3″)
- TFT Liquid Crystal Interface (1.3″ / 2.0″ HD LCD)
- 25MHz System Crystal
- 32.768KHz RTC Crystal
- W25Q64 64Mbit QSPI Flash
- 1x 10/100 Ethernet MAC
- SWD Header
- User Buttons and Reset Button
- DCMI Camera Interface
- HDMI-CEC
- Temperature Sensor
- USB OTG Connectors
- Micro SD Card Slot
- 3.3V LDO Voltage Regulator
STMicroelectronics’ STM32H7 series are a couple of Arm® Cortex®-M7-based MCUs that claim to deliver 1327 DMIPS and 3224 CoreMark. They come in three product lines- dual-core lines, single-core lines, and value lines, and can be used in the design of many rich and complex applications including wireless modules, alarm panel systems, power management systems, etc.
To further the growth of the STM32H7 MCU series is China-based MCUdev DevEBox’s STM32H7XX-M development boards designed for factory automation, connectivity and security applications. These new STM32H7XX-M development boards are built around two different STM32H7 chips of a single-core line and a value line module. They have the same form factor and share similar features except for the difference in their core modules.
Specifications of the DevEBox STM32H7XX-M Development Boards:
- Core Module:
- STM32H743VIT6- Single-Core
- 2048KB flash memory
- 1024KB RAM
- STM32H750VBT6- Value Line
- 128KB flash memory
- 1024KB RAM
- STM32H743VIT6- Single-Core
- Oscillator:
- HSI: 64MHz
- LSI: 32kHz
- HSE: 25MHz
- LSE: 32.768MHz
- OLED interface: Plug and play, support 0.96″ / 1.3″ OLED
- TFT liquid crystal interface:
- Connect 1.3″ HD full color LCD
- Connect 2.0″ HD full color LCD
- 25MHz system crystal
- 32.768KHz RTC crystal
- 1x 10/100 Ethernet MAC
- W25Q64 64Mbit QSPI Flash
- 6x SPI, 3x I2S, 1x LPI2S, 4x I2C, 4x USART, 4x UART, 1x LPUART
- 4x SAI, SPDIFRX, SWPMI, MDIO Slave, 2x SD/SDIO/MMC, 2x CAN
- SWD header
- 2x User buttons
- 1x Reset button
- Power and Programmable LED lights
- 2.54mm integer double spacing pin
- 8 to 14-bit Parallel Camera interface
- 3x 16-bit 36-channel ADC
- DCMI camera interface
- HDMI-CEC
- 1x temperature sensor
- 2x DAC (12-bit)
- 2x ULP comparators
- 2x Op Amps
- 1x high res timer
- 2x 32-bit timers
- 2x advanced timers
- 10x general timers
- 5x low power timers
- 2x watchdogs
- 96-bit unique ID
- 2x USB OTG, 1x FS, 1x HS/FS
- 1x Micro SD
- M3 mounting holes
- 3.3V LDO voltage regulator, max current 800mA
- RTC battery header
- Power Supply: Any +3.3V pin or +5V pin, and via USB connector (+5V).
- Operating temperature range: -40 °C to +85 °C
- Dimensions: 40 mm x 68 mm
The STM32H7XX-M development boards are readily available and can be purchased either on Aliexpress or on Banggood. You’ll get the STM32H750VBT6 module board for $10.92 and the STM32H743VIT6 for $18.20.
Read more: DEVEBOX’S STM32H7XX-M DEVELOPMENT BOARDS FEATURES STMICROELECTRONICS’ STM32H7 MCUS
- What are the two core modules available on the DevEBox STM32H7XX-M boards?
The boards use either the STM32H743VIT6 single-core module or the STM32H750VBT6 value line module. - How much flash memory does the STM32H743VIT6 module have?
The STM32H743VIT6 module contains 2048KB of flash memory. - Can the board connect to different sizes of LCD screens?
Yes, the TFT interface supports connecting both 1.3″ HD full color LCDs and 2.0″ HD full color LCDs. - Does the development board include an Ethernet MAC?
Yes, it includes one 10/100 Ethernet MAC. - What is the maximum current provided by the voltage regulator?
The 3.3V LDO voltage regulator provides a maximum current of 800mA. - How can the board be powered?
Power can be supplied via any +3.3V pin, +5V pin, or through the USB connector which provides +5V. - What is the operating temperature range for these boards?
The operating temperature range is from -40 °C to +85 °C. - Are there specific interfaces for cameras on this board?
Yes, it features an 8 to 14-bit Parallel Camera interface and a DCMI camera interface. - Where can these development boards be purchased?
They are available for purchase on Aliexpress and Banggood. - What is the price difference between the two module versions?
The STM32H750VBT6 module costs $10.92 while the STM32H743VIT6 costs $18.20.
