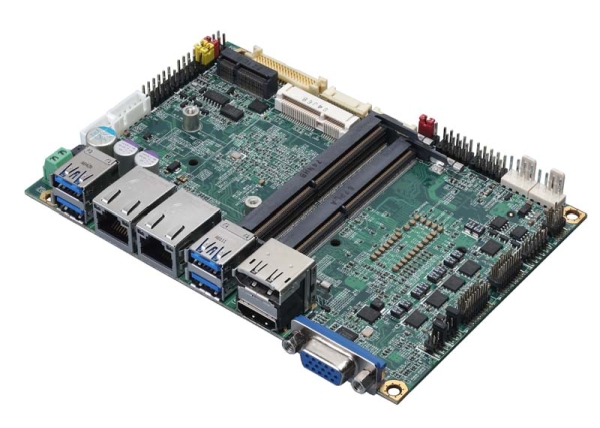

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LE-37M 3.5 inch Miniboard embedded system board based on 8th generation Intel® Core™ H-series processors.
The LE-37M 3.5 inch Miniboard platform is designed for the 8th generation Intel® Core™ H-series processors in the FCBGA1440 sockets.support DDR4 memory (Two DDR4 SO-DIMM 2666 MHz up to 32GB).
The platform is based on Intel® UHD Graphics, this GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be connected via 1 VGA, 1 LVDS, 1 HDMI and one DP port up to three displays can be controlled simultaneously. LE-37M offers lots of features including high-speed data transfer interfaces such as 4 x USB3.1 Gen2 and 2 x SATA3, equipped with dual Gigabit Ethernet, and comes with PS/2 port, 2 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 MiniPCIe socket(Supports mSATA), 1 M.2 (Key E).
Features
- CPU: Intel® 8th Gen Core™ H-series Processor in the FCBGA1440 sockets.
- Memory: Two DDR4 2666 MHz SO-DIMM up to 32 GB, support Non-ECC, unbuffered memory.
- Chipset: Intel® QM370 chipset.
- Integrated Graphics: Intel® UHD Graphics.
- LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply
- Display port interface: Onboard Display port connector. (Only LE-37M5)
- HDMI interface: Onboard HDMI connector.
- VGA interface: Onboard DB15 VGA connector.
- LAN Interface: 1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN.
- Serial ATA: Support 2 x SATA3.
- Audio: Realtek ALC262 High Definition Audio.
- Internal I/O: 2 x SATA3, 2 x RS232, 2 x RS232/422/485, 4 x USB2.0, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus.
- Rear I/O: 1 x DisplayPort(Only LE-37M5), 1 x HDMI, 1 x VGA, 4 x USB3.1 Gen2, 2 x LAN.
- Extended interface: One PCIE Mini card (Support mSATA), one M.2 (Key E).
- GPIO interface: Onboard programmable 8-bit Digital I/O interface.
- Power requirement: DC input 9~35V.
