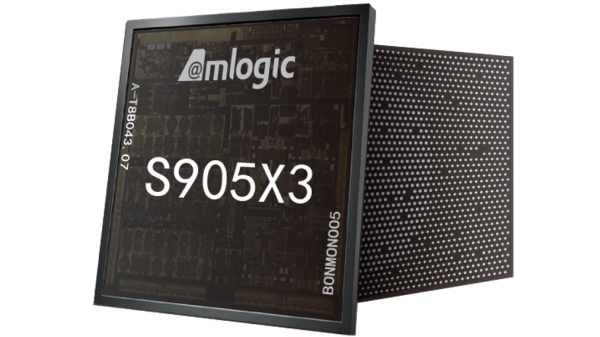

SinoVoip introduced the Banana Pi BPI M2 Pro, powered by the Amlogic S905X3 system-on-chip. This 12nm SOC features a quad-core Cortex-A55 CPU and an integrated Mali-G31 MP2 GPU. It includes a neural network accelerator for virtual assistants and supports advanced video decoding up to UHD 4K at 75fps via HDMI 2.1. The chip is optimized for multimedia applications with low power consumption and high performance.
Parts used in the Banana Pi BPI M2 Pro:
- Amlogic S905X3 Quad-core ARM Cortex-A55 Processor
- ARM Cortex-M4 Neural Network Accelerator
- Mali-G31 MP2 GPU
- Advanced Video Engine Generation 10
- HDMI 2.1 Video Output Port
A couple of weeks ago, SinoVoip Co. Limited introduced a Banana Pi BPI M2 Pro that was powered by the Amlogic S905X3 quad-core Cortex-A55 processor. The next-generation 12nm design, Amlogic S905X3 comes with an ARM 64-bit processor clocked at 1.9GHz that makes the SOC the best-in-class for several multimedia applications. The SOC integrates an ARM-based Cortex-M4 processor with a neural network accelerator function for virtual assistants like Amazon Alexa, Apple’s Siri, Google Now.
With a 12nm design, each processor core runs at a frequency of 500MHz and CPU utilization of 17%. Thanks to the manufacturing process as it boosts performance, providing low power consumption. Along with the powerful CPU cores, there is an integrated GPU, Mali-G31 MP2 that has a maximum speed of 650MHz and delivers performance up to 1.3Gpix/s per core. This famous GPU also comes with the support for OpenGL ES 3.2 and Vulkan 1.0, which brings performance and graphical improvements for complex processing tasks.
When it comes to multimedia applications, the vision processing unit is an important piece of hardware in the SOC. To support this, Amlogic S905X3 comes with the advanced video engine generation 10 for decoding that supports H.256 and V9 codecs with various HDR formats. Using this SOC, the user can take videos up to UHD 4K at 75 frames per second. Thanks to the HDMI 2.1 video output for automatic refresh synchronization.
Features Of Amlogic S905X3 SOC:
- CPU: Quad-core ARM Cortex-A55 Processor with ARM Cortex-M4 for Neural engine
- GPU: Mali-G31 MP2 at 650MHz and performance of 1.3Gpix/s per core
- NPU: 1.2 TOPS (Optional)
- VPU: Support H.256 and V9 with various HDR formats, including Dolby Vision, Advanced HDR10, HDR 10+, HLG, Prime HDR
- Application: Multimedia
- Manufacturing process: 12nm
Read more: LEARN MORE ABOUT AMLOGIC S905X3 SOC FOR MULTIMEDIA APPLICATIONS
-
What processor powers the Banana Pi BPI M2 Pro?
The device is powered by the Amlogic S905X3 quad-core Cortex-A55 processor. -
Does the Amlogic S905X3 support virtual assistants like Alexa or Siri?
Yes, it integrates an ARM-based Cortex-M4 processor with a neural network accelerator for these services. -
What is the maximum clock speed of the Mali-G31 MP2 GPU?
The GPU runs at a maximum speed of 650MHz. -
Can the Amlogic S905X3 decode H.265 video codecs?
Yes, the advanced video engine generation 10 supports H.265 and V9 codecs. -
What is the highest video resolution and frame rate supported by this SOC?
It supports videos up to UHD 4K at 75 frames per second. -
Which HDR formats are supported by the vision processing unit?
It supports Dolby Vision, Advanced HDR10, HDR 10+, HLG, and Prime HDR. -
What manufacturing process does the Amlogic S905X3 use?
The SOC uses a 12nm design to boost performance while providing low power consumption.
