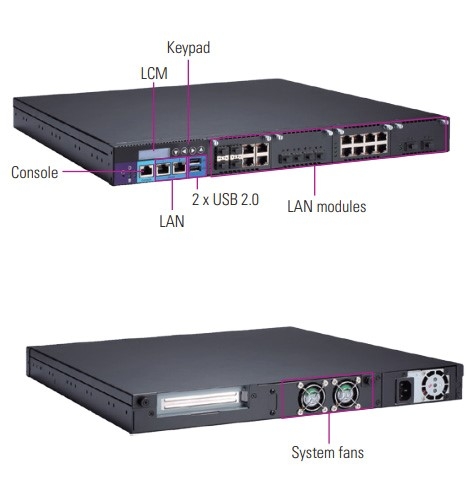

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to release the NA591, an advanced 1U rackmount network appliance platform with a maximum of thirty-four LAN ports. This high-performance network appliance system is powered by the Intel® Xeon® E-2200 and 9th/8th gen Intel® Core™ i7/i5/i3 (Coffee Lake/Coffee Lake Reflash) processors with the Intel® C246 chipset. The NA591 comes with four expandable LAN module slots that support 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/LAN Bypass interfaces, greatly enhancing its flexibility and scalability. This scalable 1U network appliance platform delivers security, stability and reliability for VPN, firewall, network bandwidth controller, WAN accelerator and surveillance system applications.
“Axiomtek’s NA591 features optimized computing power and virtualization capacity in a compact 1U form factor. It provides stable, reliable and non-stop network operation for a wide range of applications in industrial cybersecurity,” said Bruce Cheng, a product manager of Product PM Division at Axiomtek. “This outstanding network security appliance features Intelligent Platform Management Interface (IPMI) to allow administrators to monitor system health and manage systems. Trusted Platform Module (TPM) is supported to bolster hardware-based data protection. Moreover, it features latch-type LAN Bypass functions for fail-over option as well as featuring BIOS console redirection. The NA591 is an ideal platform for network security, cloud computing and data centers applications.”
The NA591 is equipped with four DDR4-2666 U-DIMM slots with a memory capacity of up to 128GB. It also offers two 2.5” SATA HDD and one mSATA for adequate storage. The rackmount network communication platform has two USB 2.0 ports, one serial console port and one VGA port. To ensure reliable operation, the well-developed NA591 supports watchdog timer featuring 255 stepping for system reset and 8 stepping for LAN Bypass. The high-performance network appliance platform is compatible with Linux operating systems.
Advanced Features:
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake Reflash)
- 4 DDR4-2666 U-DIMM for up to 128GB memory
- up to 34 GbE LAN ports
- 4 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass for optional
- Supports 1U redundant power supply for optional
- Supports IPMI and TPM for optional
Suitable for network security, cloud computing and data centers applications.
