Summary of FemtoFET – 20V 500mA 0.6×0.7mm MOSFET From TI
Texas Instruments introduced the FemtoFET series, featuring ultra-small N-channel (CSD15380F3) and P-channel (CSD25480F3, CSD23280F3) MOSFETs in LGA packages. Highlighted is the CSD15380F3, designed for handheld devices with a 20V rating, 990 mohm resistance, and a tiny 0.73 mm × 0.64 mm footprint. Its low gate charge of 0.216 nC enhances switching speeds for data lines.
Parts used in the FemtoFET Series:
- CSD15380F3 N-channel MOSFET
- CSD25480F3 P-channel MOSFET
- CSD23280F3 P-channel MOSFET
- LGA package (Land Grid Array)
Texas Instruments “TI” recently announced FemtoFET series.
There are N-channel MOSFETS like CSD15380F3 and P-channel MOSFETS like CSD25480F3 and CSD23280F3 in this series. These transistors are SMD (Surface Mount Devices) available in a very small package, the land grid array (LGA) package.
To explore this family we will highlight the FemotoFET MOSFET CSD15380F3. It has a 20V Vds, 990 mohm Rds @ Vgs=8, 500mA maximum Id, 0.5W power dissipation and ultra-small LGA Footprint 0.73 mm × 0.64 mm which make it suitable for many handheld and mobile applications.
The new MOSFET has Qg = 0.216 nC Ultra-low capacitance and that improves switching speeds in data line applications.
For more detail: FemtoFET – 20V 500mA 0.6×0.7mm MOSFET From TI
- What components are included in the TI FemtoFET series?
The series includes N-channel MOSFETs like CSD15380F3 and P-channel MOSFETs like CSD25480F3 and CSD23280F3. - What type of package do these transistors use?
These transistors are SMD devices available in a very small land grid array package. - What are the key specifications of the CSD15380F3?
It features a 20V Vds, 990 mohm Rds at Vgs=8, 500mA maximum Id, and 0.5W power dissipation. - How does the CSD15380F3 benefit mobile applications?
Its ultra-small LGA footprint of 0.73 mm by 0.64 mm makes it suitable for many handheld and mobile applications. - What is the gate charge value of the new MOSFET?
The new MOSFET has a Qg of 0.216 nC which represents ultra-low capacitance. - How does low capacitance improve performance?
Ultra-low capacitance improves switching speeds in data line applications. - Can the CSD15380F3 be compared to traditional packages?

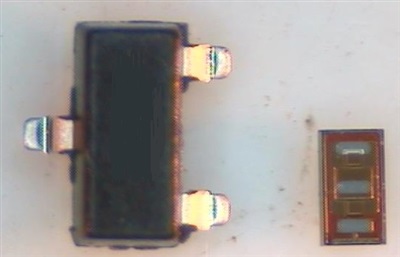

Yes, images show the traditional SOT-23 package next to the smaller CSD18541F5 LGA package.
