Summary of PROGRAMMING TPI AVRS USING USBASP PROGRAMMER
AVR microcontrollers utilize RISC architecture with on-chip flash memory, widely used in automation and defense. While most use In-System Programming (ISP) via SCK, MISO, MOSI, and RESET pins, newer models employ the Tiny Programming Interface (TPI). TPI requires only three pins: Reset, TPIDATA, and TPICLK. The article highlights using a USBASP programmer to flash these newer TPI-based AVRs, noting that the device's LED indicates power and activity during code uploads.
Parts used in the AVR Microcontroller Project:
- AVR microcontrollers
- In-System Programming (ISP) feature
- Serial Clock (SCK)
- Master-In-Slave-Out (MISO)
- Master-Out-Slave-In (MOSI)
- RESET pin
- USBASP programmer
- Tiny Programming Interface (TPI)
- TPIDATA pin
- TPICLK pin
AVR microcontrollers are RISC architecture-based microcontroller series that have on-chip flash memory for data storage. The popularity of ARM microcontrollers can be seen by the range of applications it has. They are used in home automation, touch screen, automobiles, medical devices, and defense. They are also quite popular among hobbyists and makers. Most AVR microcontrollers use the In-System Programming (ISP) feature. ISP is a feature of microcontrollers that allows uploading of a program while the chip is on the system. This aids the end-users as they can program the hardware device according to their needs. Three pins are dedicated for the programming which are Serial Clock (SCK), Master-In-Slave-Out (MISO), and Master-Out-Slave-In (MOSI). All types of memory on the micro-controller can be accessed using the SCK, MISO, and MOSI pins while holding the RESET pin LOW.

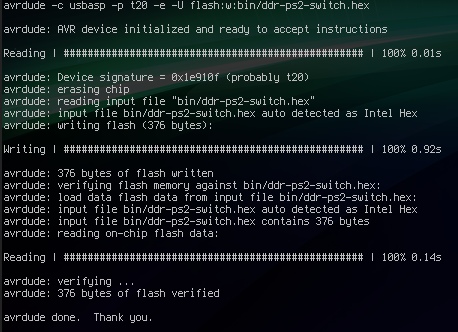

USBASP is an open-source ISP (In-System Programming) programmer for AVR devices. If someone wants to develop programs that use the UART of Atmega32, you need to upload code using ISP. USBASP can be used for programming other AVR micro-controllers also. It can be used for burning the boot loader. The LED on the board indicates power. It goes off while uploading code, giving an additional indication. Newer AVRs use much faster programming techniques like TPI and UPDI. But someone may want to flash newer TPI-based AVR microcontrollers with an old USBASP board. Kevin Cuzner documented how to program TPI-only AVR microcontrollers using a USBASP device.
TPI Programming: A Summary
Before going into the steps involved in the programming process, let’s first get an overview of TPI programming. The Tiny Programming Interface (TPI) is the only programming interface available in some newer AVR microcontrollers. TPI interface method consists of two layers Physical layer and the Access layer. The physical layer consists of two operations: transmit and receive. The TPI Access layer controls the mode of operation. TPI interface method needs only 3 pins for usage which are Reset, TPIDATA, and TPICLK. TPIDATA is a bidirectional data line unlike in the SPI method, where 2 data lines are used for transmission and reception of data.
Read more: PROGRAMMING TPI AVRS USING USBASP PROGRAMMER
- What is the primary benefit of the ISP feature?
It allows users to upload programs while the chip remains on the system. - Which pins are dedicated for standard ISP programming?
SCK, MISO, MOSI, and the RESET pin held LOW. - Can the USBASP programmer be used for newer TPI-based AVRs?
Yes, it can program TPI-only AVRs if documented methods are followed. - How many pins does the TPI interface require?
The TPI interface needs only three pins: Reset, TPIDATA, and TPICLK. - What is the function of the LED on the USBASP board?
The LED indicates power and turns off while uploading code. - How does TPIDATA differ from SPI data lines?
TPIDATA is a single bidirectional line, whereas SPI uses two separate lines for transmission and reception. - What layers make up the TPI interface method?
The TPI interface consists of a Physical layer and an Access layer. - Can the USBASP programmer burn boot loaders?
Yes, the USBASP can be used for burning the boot loader.
