Summary of RUIDENG DPS5020 – 50V 20A POWER SUPPLY MODULE REVIEW
The DPS5020 is a 0-50V/0-20A programmable power supply module integrating analog and digital control. It consists of a main controller board and a front panel with an OLED display, buttons, and a knob. The device supports Bluetooth and USB connectivity via included converters, allowing PC software control. It features current limiting, stores up to 10 presets, and includes cables and a user manual in the package.
Parts used in the DPS5020 Project:
- Main controller board
- Front panel module
- OLED display
- Control buttons
- Control knob
- FTDI UART to USB converter
- Bluetooth module
- User cables
- User manual

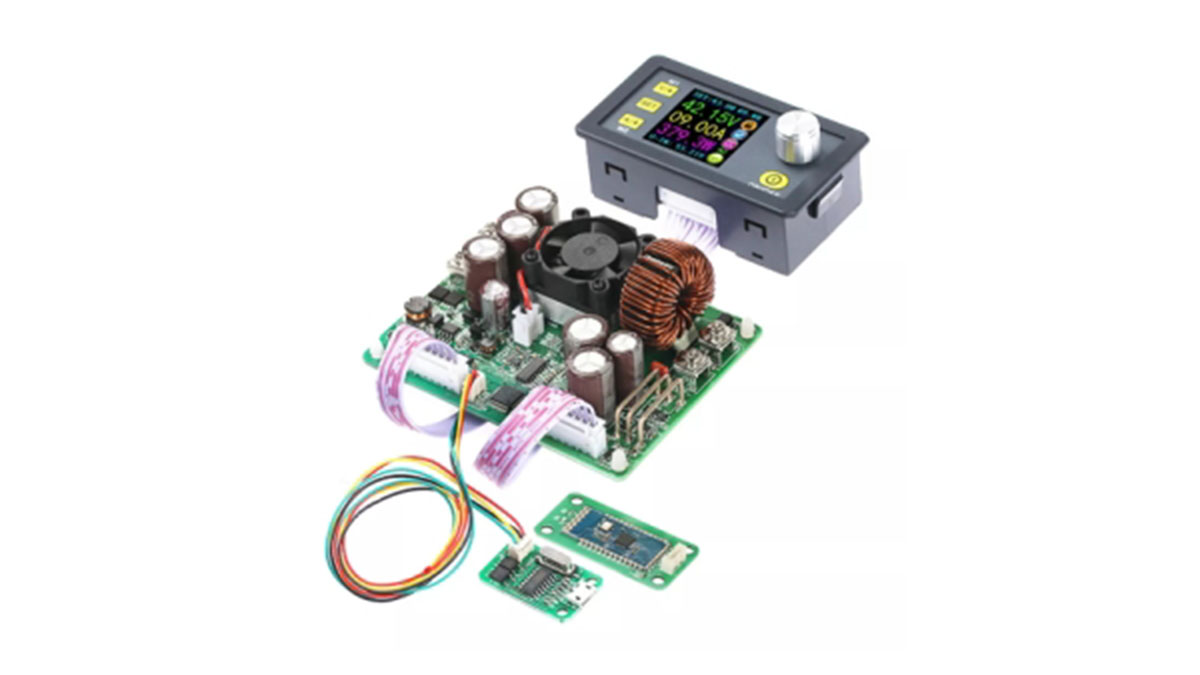

The DPS5020 is a constant voltage/current programmable control power supply module, that integrates analog and digital control in one device. Th e module is a 0-50V/0-20A Lab PSU module that comes in 2 parts, the main controller and a front panel. The main board has connections for input/output voltage as well as connection headers for Bluetooth and USB to Serial converter.
The front panel module has buttons and a control knob to set the desired voltage/current and an OLED display to show actual readings and set points. The DPS5020 can store up to 10 preset group values which are preserved during power off. You can also quickly set two stored group values. In comparison with traditional analog power supplies, it is more convenient to quickly set the voltage or current required. Using the provided instructions, assembling and switching on the device is straight forward. Along with the package, you will receive a small user manual, cables, and the two main modules.
USB And Bluetooth Connection
In the box, there’s is also a FTDI – i.e. UART to USB converter and a Bluetooth module (with pass: 1234, which just looks like a wireless UART COM port). You can use the available software to make a serial connection (wired or wireless) to the module, by downloading the PC software accordingly. Once the software is loaded, and the serial connector is connected to the board and PC, you are able to control the board from the onscreen menus. When the maximum current is set to 1A, voltage is set to 5V and connect a 2-ohm load, the voltage immediately drops to ensure no more than 1A flows through the load. This is the current limiting feature.
When the current limit is removed, the same load draws 2.4A and that’s a total of 12w of power, which follows Ohms Law. In this case the output voltage stays rock solid at 5v and the supply itself remains cold enough. To test another scenario, you can set the output to 20mA, attach a small LED to the output – and turn the unit on.
Read more: RUIDENG DPS5020 – 50V 20A POWER SUPPLY MODULE REVIEW
- What components make up the DPS5020?
The device comes in two parts: the main controller and a front panel. - Can the DPS5020 store preset values?
Yes, it can store up to 10 preset group values which are preserved during power off. - How do you connect the module to a PC?
You can use the provided FTDI converter or Bluetooth module with PC software to create a serial connection. - Does the DPS5020 have a current limiting feature?
Yes, when the maximum current is set, the voltage drops to ensure no more than that current flows through the load. - What is the passcode for the Bluetooth module?
The passcode for the Bluetooth module is 1234. - How does the output behave under normal load conditions?
When the current limit is removed, the output voltage stays solid at the set value while the supply remains cool. - Is assembly difficult for the DPS5020?
No, assembling and switching on the device is straightforward using the provided instructions. - What items are included in the package?
The package includes the two main modules, cables, a small user manual, an FTDI converter, and a Bluetooth module.
