Summary of TCAM-MINI RADIOMETRIC THERMAL IMAGING CAMERA WITH DESKTOP APP
This article introduces Dan Julio's tCam-Mini, a compact radiometric thermal imaging camera designed for precise temperature measurement. Utilizing the Flir Lepton 3.5 sensor, it captures pixel-level thermal data and supports both radiometric and AGC modes. The device connects via TCP/IP sockets and Wi-Fi (AP/STA), enabling compatibility with custom applications. A dedicated desktop application facilitates image streaming, multi-palette display, file export in various formats, and advanced analysis tools like spotmeters and time-based graphing.
Parts used in the tCam-Mini Thermal Imaging Project:
- tCam-Mini Camera
- Flir Lepton 3.5 Sensor
- TCP/IP Socket Interface
- Wi-Fi Module (AP and STA Modes)
- Desktop Application
- Windows Operating System
We saw thermal imaging cameras for the evaluation of the hardware temperature of various devices. Open thermal camera is compatible with mobile phone applications for thermal imaging and FLIR ETS320 a non-contact thermal imaging camera solution for electronic testing are some of the examples. Talking more about thermal imaging, Dan Julio’s tCam-Mini is a radiometric camera for thermal imaging using a windows application.

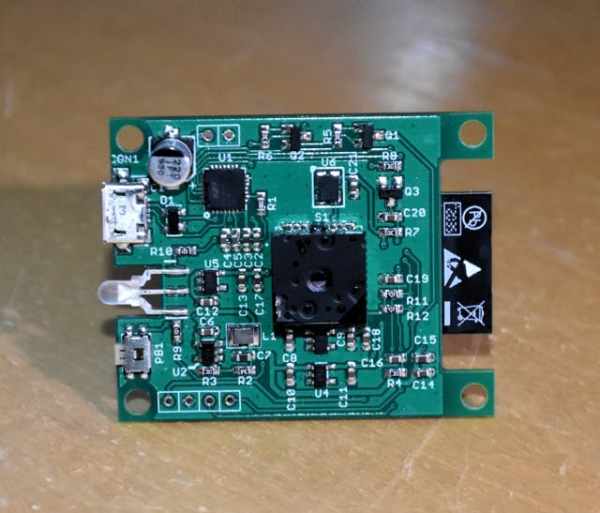

The wireless streaming camera features a compact size dedicated to measuring temperature for thermal imaging. The radiometric data collection becomes easier by using the Flir Lepton 3.5 sensor. The acquisition of radiometric data contains the temperature information of every pixel. Hence, it opens up many options for performing thermographic analysis, along with using the different colors to show the thermal images.
The tCam-Mini camera can function both in radiometric as well as in AGC modes. The radiometric mode provides the temperature info for each pixel whereas the AGC mode focuses to provide better quality images. The camera supports JSON-based commands for interfacing using TCP/IP socket making it compatible with custom applications. The tCam-Mini thermal imaging camera also supports AP and STA Wifi modes for dynamic connectivity.
Desktop Application For TCam-Mini Camera
The camera supports single image capturing as well as it can operate on data streaming mode. This includes display images and streaming with multiple palettes. The tCam-Mini thermal imaging camera also provides the feature of saving and loading images or streams in the files storing the radiometric data for later use. The files can be video as well as image files. Additionally, it also provides the option of exporting the images in jpg, png, or tiff format and copying the current image to the clipboard of the device.
The desktop application which is compatible with the camera allows histogram display and analysis of pixel populations. The application also includes a spotmeter and up to four additional markers for displaying the temperature at various points of an instance. The graphing function plots the spotmeter and marker data with respect to time. The text file exports the graph data for analysis by different tools and programs. Print graph function allows creating a PDF on computers for printing purposes.
Read more: TCAM-MINI RADIOMETRIC THERMAL IMAGING CAMERA WITH DESKTOP APP
- What sensor does the tCam-Mini use for radiometric data?
The camera uses the Flir Lepton 3.5 sensor. - How can the tCam-Mini connect to devices dynamically?
It supports AP and STA Wifi modes for dynamic connectivity. - Does the camera support different operating modes?
Yes, it functions in both radiometric and AGC modes. - Can users save captured images or streams?
Yes, the camera allows saving and loading images or streams in files storing radiometric data. - What file formats are supported for exporting images?
Images can be exported in jpg, png, or tiff formats. - What analysis features does the desktop application offer?
The app includes histogram display, spotmeter, markers, and graphing functions. - Is the camera compatible with mobile phone applications?
The article mentions Open thermal camera is compatible with mobile apps but specifically describes the tCam-Mini using a Windows application. - Can the graph data from the application be analyzed by other tools?
Yes, the text file exports the graph data for analysis by different tools and programs.
