WINMATE IP70 IS A MINI-ITX BOARD EQUIPPED WITH APOLLO LAKE PENTIUM

Taiwan based company calledĀ WinmateĀ recently released a new board. The new board is equipped with a quad0core 1.1GHz/2.5GHz Apollo Lake Pentium N420 processor. It is rated an industrial thin Mini ITX board with operating temperature support from -20 to 60Ā°C and the storage temperature is -40 to 70ā° C.

The Winmate board is equipped with up to 8GB dual-socket, 1866MHz DDR3L and comes with 4 USB 3.0 ports, 2 GbE ports, and 2 SATA interfaces. The board is currently called theĀ Winmate IP70Ā and it currently has no operating system information however, a similar board released by the company runs onĀ LinuxĀ andĀ Windows.Ā So there is a high probability that this board will also support Linux and Windows.

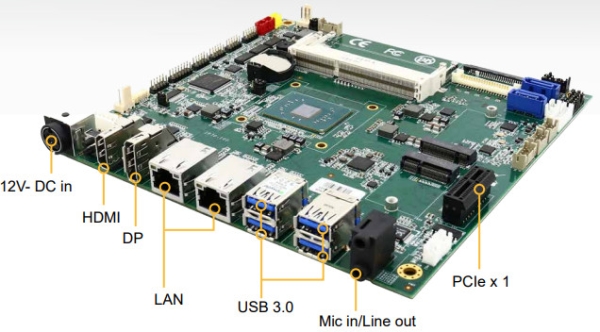

Winmate IP70Ā comes with different peripherals, some of which are: an audio jack, Ā a single DP 1.2 (4096 x 2160 @60Hz), 1x HDMI 1.4b (3840 x 2160 @ 30Hz), 1 Power jack, a 1 x 3-pin digital panel for controlling brightness and even a 1 x 7-pin inverter. Dimensions of the board are 170 mm by 170 mm are also available along with an On-Screen-Display (OSD) membrane control.

Also, there is an M.2 slot for Wi-Fi and an optional PCIe 2.0 expansion slot on the Winmate IP70 board. One of the two SATA presents will not be available when the M.2 SATA is being used. This is because SATA 2 and M.2 SATA cannot be used concurrently.

For graphics, there is anĀ Intel HD Graphics 505Ā which supports DirectX 12 and OpenGL4.3. The audio controller is a Realtek HD codec and it accepts 12V Single Voltage Power input.

Read more: WINMATE IP70 IS A MINI-ITX BOARD EQUIPPED WITH APOLLO LAKE PENTIUM
