Summary of 8051 PROGRAMMABLE POWER SUPPLY
This article describes an 8051-based programmable power supply. The system uses a keypad to input values, which are processed by the 8051 microcontroller via Port P1. An integrated DAC 0808 converts these digital inputs into an analog voltage output ranging from 0 to 5 volts with 0.1-volt precision. A 7-segment display connected to Port P0 shows the absolute voltage value, while Port P2 indicates the decimal part. Specific keypad keys function as delete ("*") or execute ("#") commands for the conversion process.
Parts used in the 8051 Programmable Power Supply:
- Keypad circuit
- 8051 Microcontroller (Port P1, P0, P2)
- DAC 0808 Integrated Circuit
- 7-segment display
- LED indicators
Circuit Operation: Circuit diagram appears in the 0-5 the entered value from the keypad circuit, which is connected to port P1 applied to the integrated DAC 0808 DAC output is obtained from the analog…Electronics Projects, 8051 Programmable Power Supply “8051 example, avr project, keil example, microcontroller projects, “
Circuit Operation: Circuit diagram appears in the 0-5 the entered value from the keypad circuit, which is connected to port P1 applied to the integrated DAC 0808 DAC output is obtained from the analog voltage. P0 port is connected to the 7-segment display of the absolute value of the voltage, which is connected to port P2 indicator shows the decimal value of the voltage. On the keypad “*” key to delete the entered value, “#” key, the entered value is used to convert the analog voltage. Output of 0-5 V 0.1 V-0, 2Volt precision analog voltage is obtained.

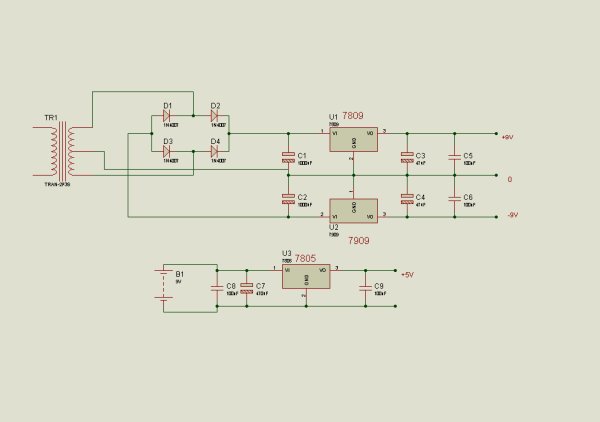

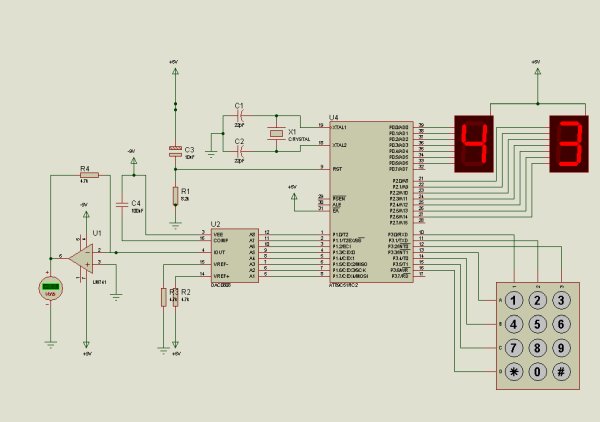

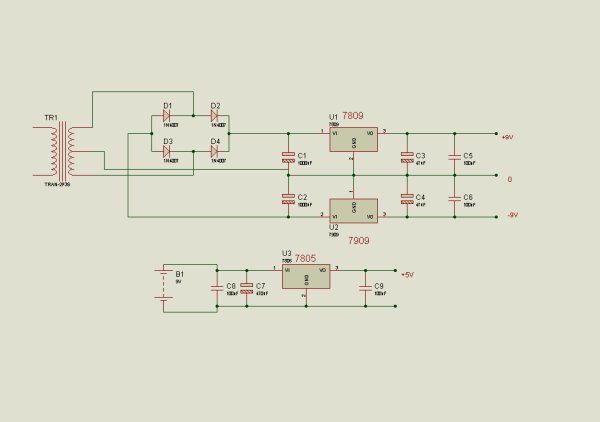

PROGRAMMABLE POWER SUPPLY CIRCUIT DIAGRAM
8051 Programmable Power Supply Keil source: https://320volt.com/en/8051-ile-programlanabilir-guc-kaynagi-yapimi/ code proteus pcb simulation files: 8051-programmable-power-supply.rar AUTHOR: @Ali İhsan UYSAL
Alternative File Download LINK list (in TXT format): LINKS-4634.zip
- How is the entered value processed?
The value entered from the keypad circuit connected to port P1 is applied to the integrated DAC 0808. - What is the output range of the analog voltage?
An analog voltage output of 0-5 V is obtained. - What is the precision of the analog voltage?
The system provides 0.1 V precision. - Which key deletes the entered value?
The * key on the keypad deletes the entered value. - Which key executes the analog voltage conversion?
The # key is used to convert the entered value into analog voltage. - How is the absolute value of the voltage displayed?
The absolute value of the voltage is shown on the 7-segment display connected to port P0. - Where is the decimal value of the voltage indicated?
The decimal value of the voltage is indicated by the connection to port P2.
