Summary of AT89C51 MICROCONTROLLER ANALOG CLOCK FOR GRAPHIC LCD
This article describes an analog clock project utilizing an AT89C51 microcontroller and a HY-12864K 128×64 pixel graphical LCD. The system displays time using the LCD's three-part structure of rows, columns, and pages. The project includes source code for Keil, Proteus ISIS simulation files, and a PDF detailing the LCD connections.
Parts used in the Analog Clock GLCD Project:
- AT89C51 Microcontroller
- HY-12864K 128x64 Pixel Graphical LCD
- Keil Source Code
- Proteus ISIS Simulation Schematic Files
- LCD Connection PDF Document
Analog Clock GLCD We use 128×64 pixel graphical LCD having “HY-12864K” is. This adds the file extension of the LCD connections are provided in PDF. 128 × 64 graphic LCD s have the same… Electronics Projects,AT89C51 Microcontroller Analog Clock for Graphic LCD “8051 example, avr project, keil example, microcontroller projects, “
Analog Clock GLCD We use 128×64 pixel graphical LCD having “HY-12864K” is. This adds the file extension of the LCD connections are provided in PDF. 128 × 64 graphic LCD s have the same general structure. Differences spending power connection types and LED colors. Graphic LCDs are managed as two frames (64 × 64) and consists of three parts. Rows, columns and pages. Page 8 of 128 × 64 graphic display as standard and has 64 columns.

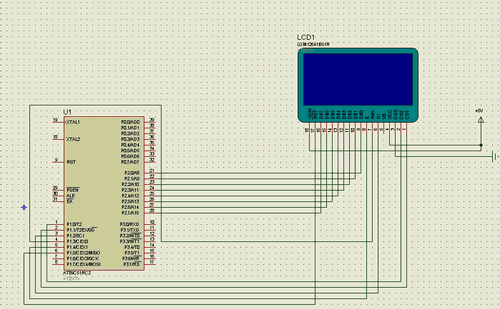

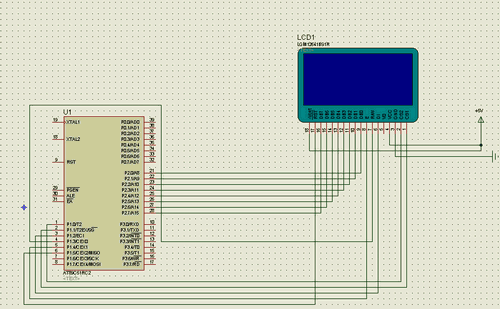

ANALOG CLOCK CIRCUIT

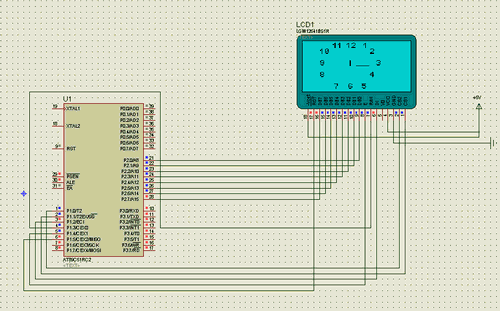

source: AT89C51 MICROCONTROLLER ANALOG CLOCK FOR GRAPHIC LCD Analog Clock circuit keil source code proteus isis simulation schematic files at89c51-microcontroller-analog-clock-for-graphic-lcd.zip
-
What type of microcontroller is used in this project?
The project uses an AT89C51 microcontroller. -
Which specific model of graphical LCD is utilized?
The project utilizes a 128x64 pixel graphical LCD with the model name HY-12864K. -
How is the graphic LCD managed internally?
Graphic LCDs are managed as two frames consisting of 64x64 pixels each. -
What are the three main parts of the display structure?
The display consists of rows, columns, and pages. -
Where can I find the connection details for the LCD?
The file extension of the LCD connections is provided in a PDF document. -
Is there software available for simulating this circuit?
Yes, Proteus ISIS simulation schematic files are available for the circuit.
