This article details an experimental ATmega32-based web server project utilizing an ISA Ethernet card with an RTL8019 chip. The system controls relays, monitors LEDs, and connects cameras or servo motors via a PCF8574 I2C module. While resource-limited and featuring a partial TCP/IP stack, it demonstrates functionality for home automation tasks like access control using shared source code and schematics.
Parts used in the ATmega32 Web Server Project:
- ATmega32 Microcontroller
- ISA Ethernet Card (RTL8019 Chip)
- ISA-Ctrl Board
- NE2000 Compatible Network Interface Card
- PCF8574 Integrated Circuit (I2C Module)
- 8 On-board Relays
- On-board LEDs
- Camera Connection Module
- Servo Motor Control Interface
- 2x31 Pin Connector Socket
Very detailed and complicated project all of the resources to be shared for different applications feyza can give example might now mikrocontroller.co my site ATmega32 web server project shared resources of the project the… Electronics Projects, RTL8019 ISA Web Server Circuit ATmega32 Relay Control Camera Connection “avr project, microcontroller projects, “
Very detailed and complicated project all of the resources to be shared for different applications feyza can give example might now mikrocontroller.co my site ATmega32 web server project shared resources of the project the ulrichradig. (previously it was mentioned, was shared) ISA ethernet card and atmel access control systems card

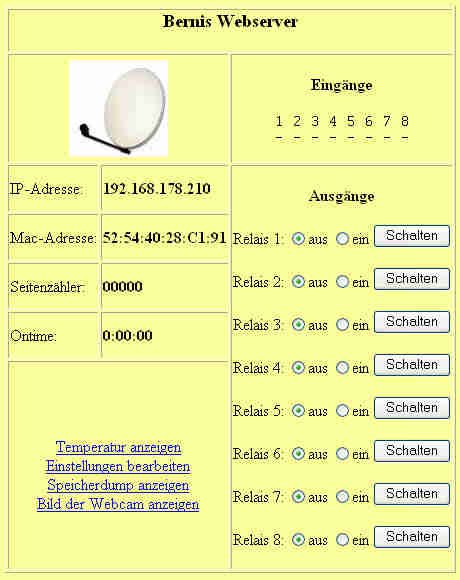

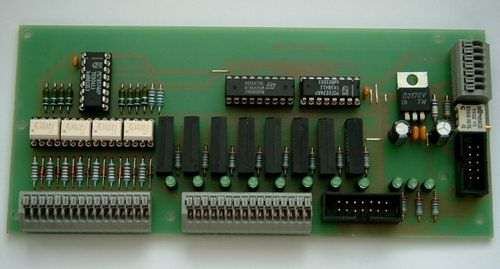

This web server card that will work with a module (I2C interface) mum-elektrotechnik. on the site shared module PCF8574 integrated on the board via web 8 relays can be controlled on-board LEDs situation is observed and the camera connection can be made with this module servo motor control could be made also mentioned all source code shared
ATMEGA32 ATMEL WEB SERVER
The web server is an experimental project. It is intended to show what else goes with a simple controller and an old network card. Of course, this can not be a full-fledged server due to limited resources. With us the corresponding functions will operate satisfactorily, but is no guarantee that it works flawlessly with others. For example, the TCP / IP stack is implemented only partially.

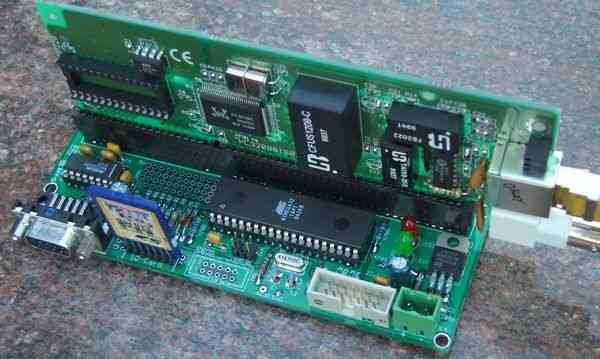

The ISA-Ctrl board has an ISA slot for receiving an NE2000 compatible network card. Are supported with RTL8019 chip or 3C5x9 currently NICs. When using a chip 3C5x9 a small Anpasung the circuit board is necessary You have to use an ISA slot not mandatory! The slot consists of a 2×31 and a 2×18 pin pin socket. When the 2x18er on the board times hard look at you will notice that only two pins are used. These are +5 V and GND. These are (for all my available network cards) already bridged to the NIC for 2×31 pin connector. This means that you can save in this case, the smaller socket. A 2×31 pin connector can be found easily at Reichelt …
Source: https://320volt.com/en/atmega32-web-sunucu-role-kontrol-kamera-baglantisi/ RTL8019 ISA Web Server Circuit ATmega32 Relay Control Camera Connection schematic source code files alternative link rtl8019-isa-web-server-circuit-atmega32-relay-control-camera-connection.rar alternative link2
- What is the main purpose of this project?
The project is intended to show what else goes with a simple controller and an old network card. - Does the TCP/IP stack work fully?
No, the TCP/IP stack is implemented only partially due to limited resources. - Which network cards are supported?
The board supports NE2000 compatible cards with RTL8019 chips or 3C5x9 NICs. - Can you control devices via the web interface?
Yes, 8 relays can be controlled on-board and LEDs can be observed via the web. - Is the ISA slot mandatory for the circuit?
No, using an ISA slot is not mandatory if power is bridged correctly. - How is the PCF8574 connected to the system?
The PCF8574 integrated circuit is connected via an I2C interface module. - What additional hardware can be connected?
A camera connection and servo motor control could be made with this module. - Are the source files available for download?
Yes, all source code, schematic, and files are shared as downloadable archives.
