Summary of DIY Mister and Fan
This DIY project creates a portable misting fan to combat summer heat using a LinkIt ONE microcontroller. The device combines a water sprayer and a motor-driven fan blade, controlled by the board to provide cooling relief during hot weather.
Parts used in the DIY Mister and Fan:
- Water Bottle
- Sprayer head
- Motor
- Tape
- Fan Blade
- Jumper Wires
- LinkIT ONE
- Battery
- Hard plastic (for blade construction)
Everyone has experienced it: a summer heat wave. This Diy spritzer and fan is perfect to beat the heat in the summer.
Step 1: Materials
Water Bottle
Sprayer head
Motor
Tape
Fan Blade
Jumper Wires
LinkIT ONE
Step 2: Sprayer

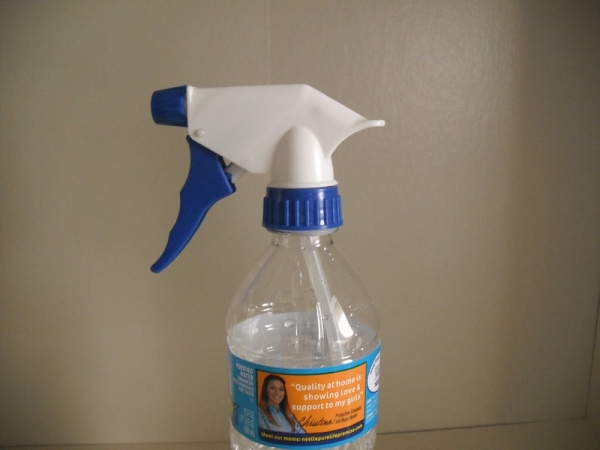

Un-screw the cap of the water bottle and screw the sprayer head on. The sprayer I used had a nub on the bottom that causes the water to some out as a mist. I recommend using one of theses but it not necessary.
Step 3: Circuit
Connect the battery to the LinkIt ONE. Then connect the 5v and ground of the LinkIT to the motor. Then attach the fan. I constructed my blade out of cut hard plastic, but other materials could work as well. However, take into account that the blade will be hit with water, I chose plastic as it was light weight and water proof.
Step 4: Final Touches
Tape the motor on top of the sprayer head, with the blade sticking in front. Next, tape the LinkIT ONE on to the back. Voila, you’re done, simply turn on the LinkIT one and spray away.
Source: DIY Mister and Fan
-
What materials are needed for this project?
You need a water bottle, sprayer head, motor, tape, fan blade, jumper wires, LinkIt ONE, and a battery. -
How do you prepare the sprayer?
Unscrew the bottle cap and screw on the sprayer head, preferably one with a nub that creates a mist. -
How is the circuit connected?
Connect the battery to the LinkIt ONE, then link the 5v and ground of the board to the motor before attaching the fan. -
Why was hard plastic chosen for the fan blade?
Hard plastic was selected because it is lightweight and waterproof, which is necessary since the blade will be hit with water. -
How do you assemble the final unit?
Tape the motor on top of the sprayer head with the blade sticking out, and tape the LinkIt ONE to the back. -
How do you operate the finished device?
Simply turn on the LinkIt ONE to start spraying and blowing air.
