Summary of AT89S52 8051 RF DC MOTOR SPEED CONTROL
Wireless RF DC motor speed control project using an AT89S52 microcontroller to send PWM signals to an L293B driver, with RF ATX-34/ARX-34 433 MHz transmitter/receiver for one-way remote commands. Power regulation uses an LM7805 and capacitors. Design phases included simulation, PCB layout in Protel DXP2004, and Keil-based firmware development implementing PWM to vary motor speed via button commands over serial-linked RF.
Parts used in the RF DC Motor Speed Control:
- AT89S52 microcontroller (8051 family)
- 433 MHz RF transmitter module (ATX-34)
- 433 MHz RF receiver module (ARX-34)
- L293B 4-channel push-pull motor driver IC
- LM7805 voltage regulator
- Capacitors (for power supply smoothing)
- DC motor
- Push buttons (for increase/decrease speed)
- PCB (designed in Protel DXP2004)
- Power supply (suitable DC source for motor and electronics)
Wireless within a certain area with a control circuit for controlling the speed of DC Motor. Work, should I use to reach my goal I began to identify materials. These materials AT89S52 microcontroller, our… Electronics Projects, AT89S52 8051 RF DC Motor Speed Control “8051 example, avr project, keil example, microcontroller projects, pwm circuits, “
Wireless within a certain area with a control circuit for controlling the speed of DC Motor. Work, should I use to reach my goal I began to identify materials. These materials AT89S52 microcontroller, our independent auditor by the company manufactured and price is also suitable 433MHz UHF frequency band enables communication RF receiver and transmitter modules, (ATX-34 ARX-34) DC motor will L293B 4-channel push-pull driver IC circuit to feed the fixed were elements that will provide voltage LM7805 and the environment (condensers). Then these steps simulation, PCB drawings (drawings were made in Protel dxp2004) and watched the process of writing programs in Keil

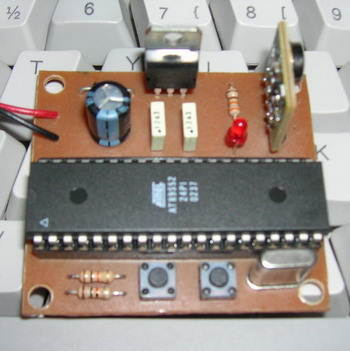

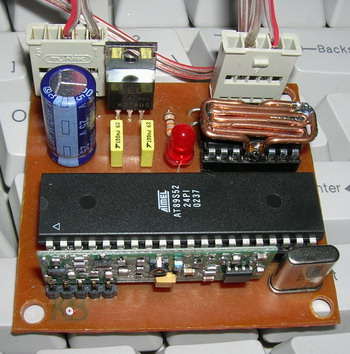

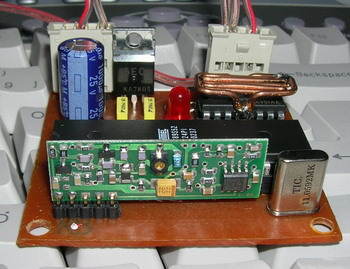

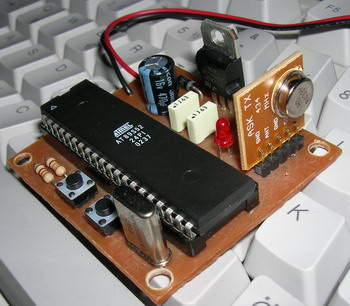

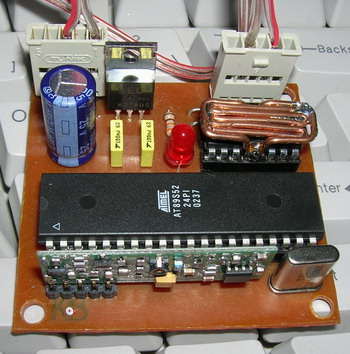

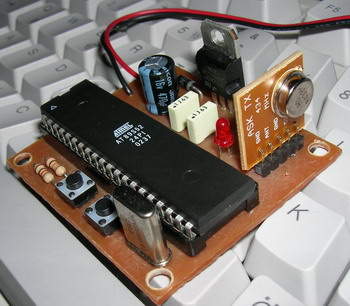

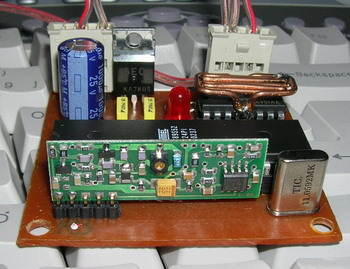

RF DC MOTOR SPEED CONTROL AT89S52
System operation: Control circuit and motor control circuits with RF module via serial port 8051 is a one-way communication. Increase or decrease the speed of the speed control circuit of any one of the buttons on the appropriate button is pressed, the cutting program is executed and motor control circuits based on the relevant button to increase the speed or decrease the speed commands are sent. This command area of the control system by evaluating them will increase or decrease the speed of the motor will decide. The engine speed PWM (Pulse Width Modulation) method to set the 8051 program was written. In the form of PWM voltage pulse is sent to the engine. Stay at one of these pulses in the period no matter how long the engine turns so fast. PWM control of the motor speed is generally done in this manner.
Source: AT89S52 8051 RF DC MOTOR SPEED CONTROL AT89S52 8051 keil source code RF DC Motor Speed Control proteus isis simulation schematic pcb at89s52-8051-rf-dc-motor-speed-control.rar
- What microcontroller is used in this project?
The project uses the AT89S52 microcontroller from the 8051 family. - Can the motor speed be controlled wirelessly?
Yes, the project uses 433 MHz RF transmitter and receiver modules (ATX-34 and ARX-34) for wireless one-way control. - How is motor speed varied in this design?
Motor speed is varied using PWM (Pulse Width Modulation) generated by the 8051 program. - What motor driver IC is used to drive the DC motor?
The L293B 4-channel push-pull driver IC is used to drive the DC motor. - What voltage regulation is provided for the control circuitry?
An LM7805 voltage regulator with capacitors is used to provide regulated supply for the electronics. - How are speed increase and decrease commands sent?
Speed increase or decrease commands come from button presses that trigger the program to send appropriate commands via the RF link. - Is the RF communication one-way or two-way?
The RF communication is one-way according to the project description. - What software tools were used in development?
Firmware was written in Keil and PCB drawings were created in Protel DXP2004; simulation was also performed.
